Anchor Shackles

Contact on whatsapp

Description

Technical Parameters and Drawings

HE Code Dimensions inch Wt. Ultimate strength
A B C D E F KGs KGs
HEAS-1013 0.5 1.31 0.81 0.63 3.28 1.88 0.36 2000
HEAS-1016 0.69 1.69 1.06 0.75 4.19 2.38 0.76 3250
HEAS-1020 0.81 2 1.25 0.88 4.97 2.81 1.22 4750
HEAS-1022 0.97 2.28 1.44 1 5.83 3.31 1.78 6500
HEAS-1025 1.06 2.69 1.69 1.13 6.56 3.75 2.75 8500





Notes:

1. Tolerance: ±5%
2. All dimensions are in MM except for marked.
3. Customized sizes are available at request.







Product Description:

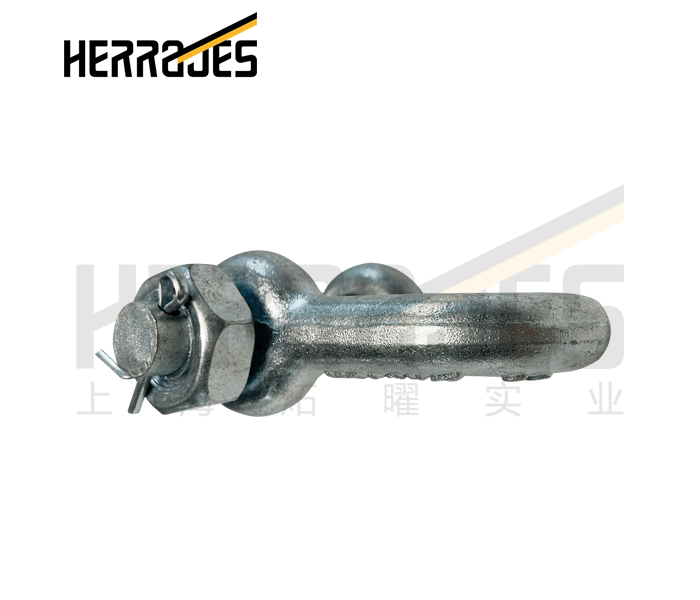

Anchor shackles are produced usually to attach suspension insulator stings to poles.
Shackles also can be used to suspend aluminium sheaves in conjunction with twin grips.
Sshackles are assembled with a cotter bolt or rivet or cotter pin.
Shackles are offered in anchor style or chain style.
Steel ASTM A36 is hot dipped galvanized to ASTM A153.
Body – Galvanized forged steel
Bolt – Galvanized steel
Split pin – Stainless steel





The above are typical only, please consult Shanghai Herrajes for further information.



Product Details:
Name: anchor shackles, bow shackles, D shackles
HS code: 7326901900
Model:
Package: bulk packing; palletized; as required
Trademark: HE, as required
Origin: China
Raw material: ASTM A536
Finish: hot dip galvanized
ODM&OEM service: yes
Sample: available, FOC
Payment term: T/T, 30% prepayment and 70% balance against B/L
Certificate: ISO
Delivery time: 20-40 days
MOQ: 500kgs
Export term: FOB; CIF
Production capacity pcs/day: 2000
Minimum tensile strength lbs.: 18000
Bolt dia. MM: 16, 20, 22,etc.
