Description

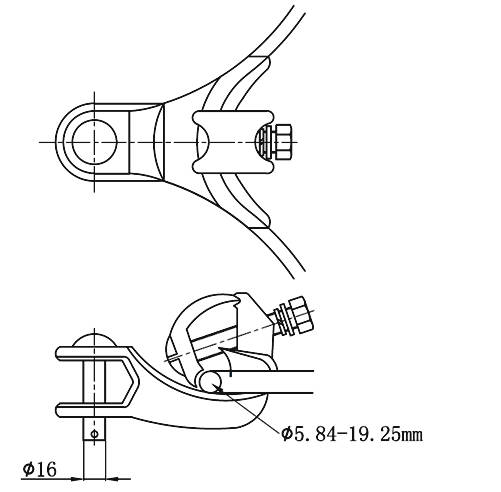

Technical Parameters and Drawings
| HE Code | Description | Ground wire range | Mounting bolt |

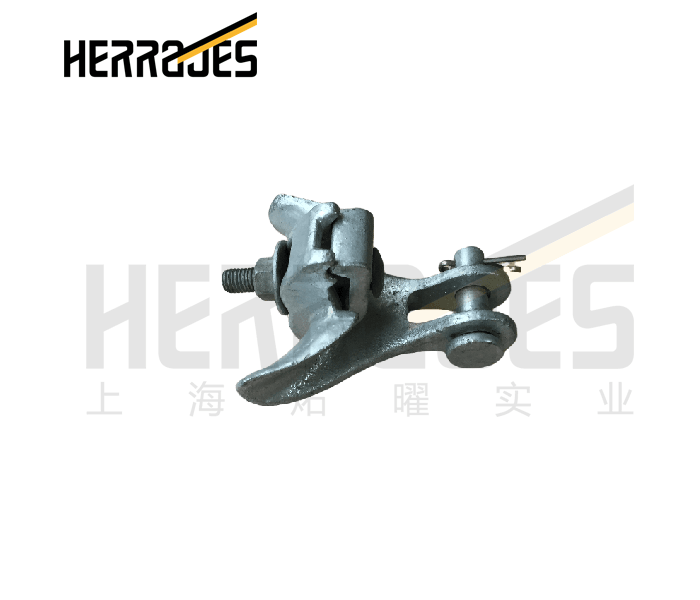

| ASC-1 | Angle suspension clamp | 5.84-19.25 | 16 |
| Notes:
1. Tolerance: ±5% |
|||||||||
| 2. All dimensions are in MM.
3. Material: steel |
|||||||||
| 4. Customized sizes are available at request.
|
|||||||||
Product Description:
The above are typical only, please consult Shanghai Herrajes for further information. |
|||||||||
| Product Details: | |||||||||

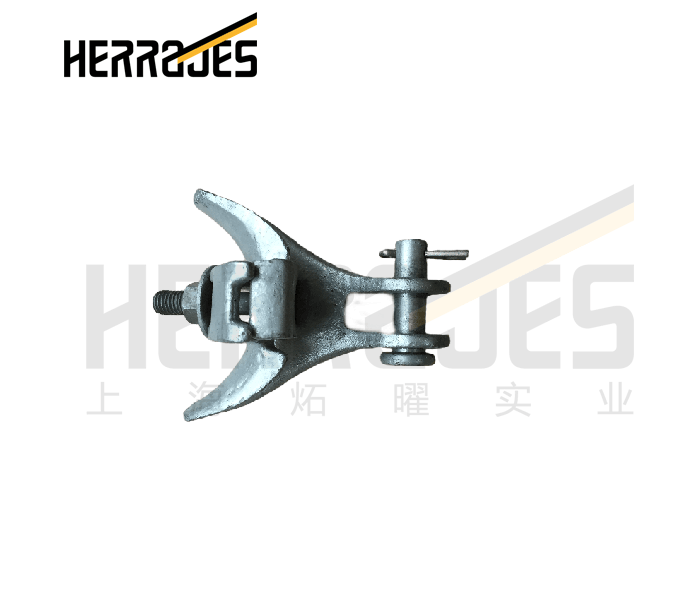

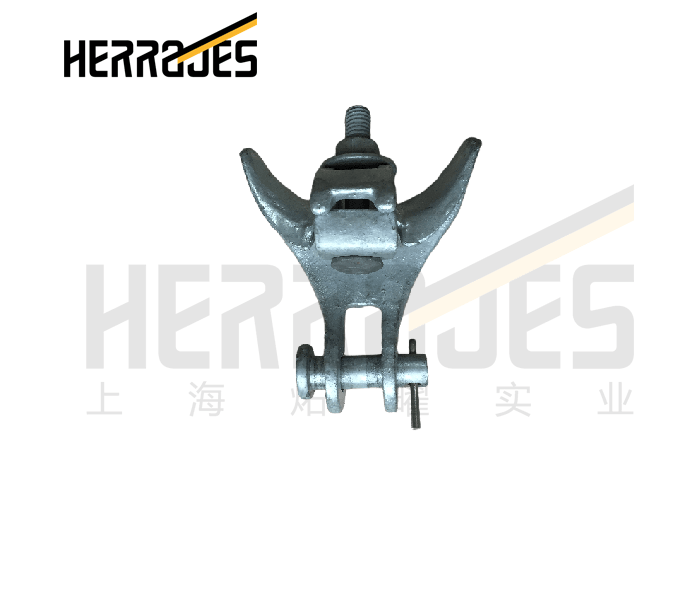

| Name: angle suspension clamps, line post clamps, XHG suspension clamps, ACA clamps | |||||||||
| HS code: 73269090 | |||||||||
| Model: ANSI/ASME | |||||||||
| Package: bulk packing; palletized; as required | |||||||||
| Trademark: HE, as required | |||||||||
| Origin: China | |||||||||
| Raw material: galvanized steel | |||||||||
| Finish: HDG | |||||||||
| ODM&OEM service: yes | |||||||||
| Sample: available, FOC | |||||||||
| Payment term: T/T, 30% prepayment and 70% balance against B/L | |||||||||
| Certificate: ISO | |||||||||
| Delivery time: 20-40 days | |||||||||
| MOQ: 500kgs | |||||||||
| Export term: FOB; CIF | |||||||||
| Production capacity pcs/day: 2000 | |||||||||
| Ground wire range MM: 5.84-19.25
Bolt: M16 |
|||||||||
