Description
Technical Parameters and Drawings
| HE Code | Specification | Bolts | |||
| HECAPG-A1 | Cu 6-50 mm² Al 16-70 mm² | Single bolt | |||
| HECAPG-A2 | Cu 10-95 mm² Al 25-150 mm² | Single bolt | |||
| HECAPG-B1 | Cu 6-50 mm² Al 16-70 mm² | Double bolts | |||
| HECAPG-B2 | Cu 10-95 mm² Al 25-150 mm² | Double bolts | |||
| HECAPG-B3 | Cu 25-185 mm² Al35-200 mm² | Double bolts | |||
| HECAPG-C1 | Cu 6-50 mm² Al 16-70 mm² | Three bolts | |||
| HECAPG-C2 | Cu 10-95 mm² Al 25-150 mm² | Three bolts | |||
| HECAPG-C3 | Cu 25-185 mm² Al 35-240 mm² | Three bolts | |||
| HECAPG-C4 | Cu 35-240 mm² Al 35-300 mm² | Three bolts | |||
|
Notes: 1. Tolerance: ±5% |
|||||
| 2. All dimensions are in MM.
3. Material: Aluminum body, with cooper contact plates on tap groove. |
|||||
| 4. Customized sizes are available at request. | |||||
| 3.Product Description:

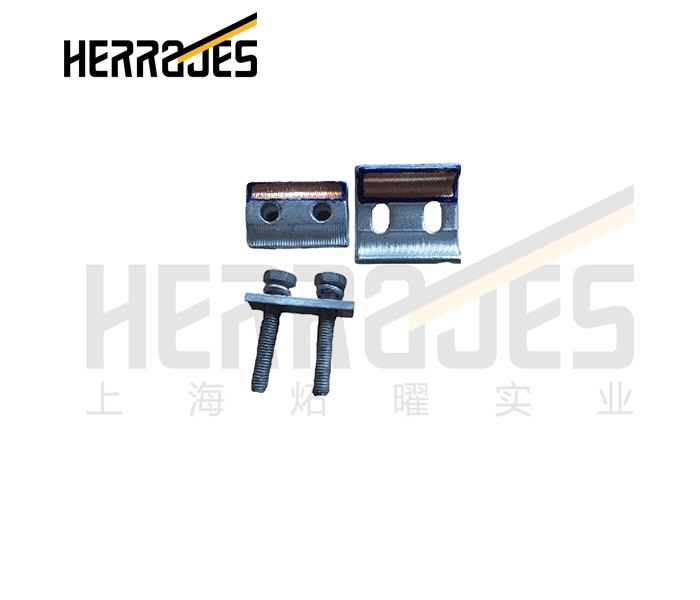

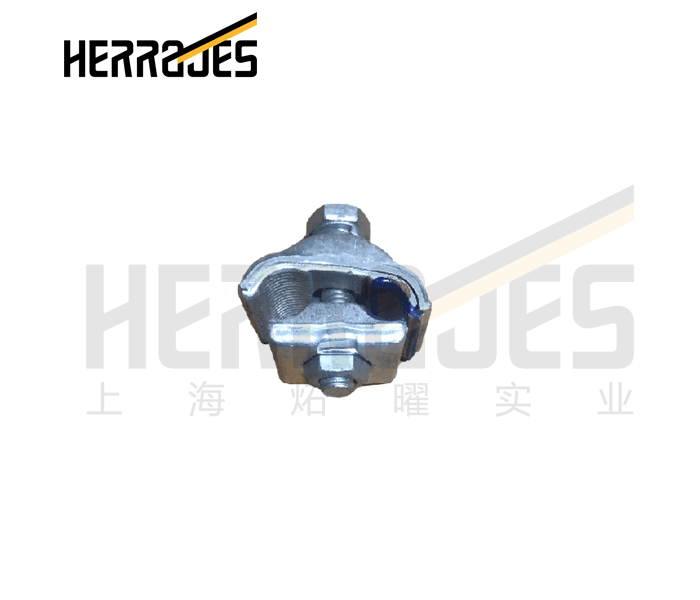

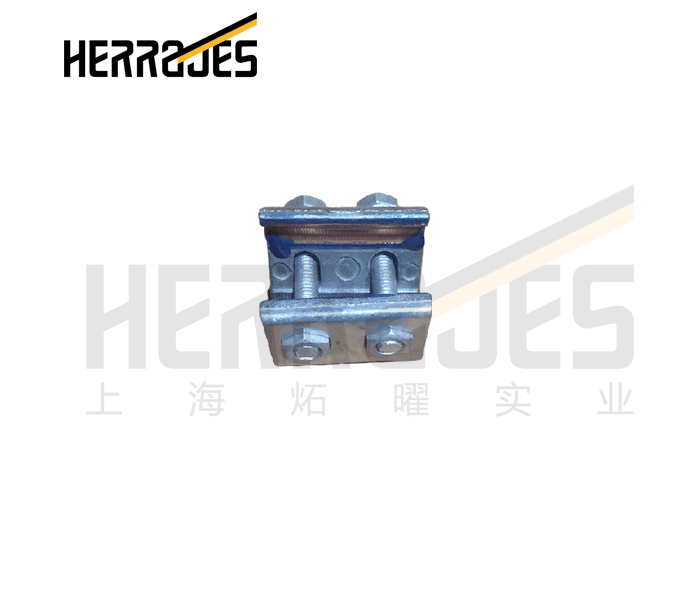

Copper parallel groove clamps are produced for main aluminum conductor to tap copper conductor. Aluminum alloy clamp body. Galvanized steel bolts, nuts. The above are typical only, please consult Shanghai Herrajes for further information. |
|||||
| 4.Product Details: | |||||
| Name: copper PG clamps, copper parallel groove clamps | |||||
| HS code: 7326 | |||||
| Model: CSA | |||||
| Package: bulk packing; palletized; as required | |||||
| Trademark: HE, as required | |||||
| Origin: China | |||||
| Raw material: aluminum | |||||
| Finish: HDG for iron parts. | |||||
| ODM&OEM service: yes | |||||
| Sample: available, FOC | |||||
| Payment term: T/T, 30% prepayment and 70% balance against B/L | |||||
| Certificate: ISO | |||||
| Delivery time: 20-40 days | |||||
| MOQ: 500kgs | |||||
| Export term: FOB; CIF | |||||
| Production capacity pcs/day: 2000 | |||||
| Bolt qty: 1,2,etc.
Bolt size: M8, M10,etc. |
|||||
