Cable Drop Clamp

Description

Technical Parameters and Drawings

Notes:

1. Tolerance: ±5%
2. All dimensions are in MM except for marked.
3. Customized sizes are available at request.

3.Product Description:

Key words: Drop anchor clamp, cable drop clamp, TENSOR PARA CABLE DE FIBRA ÓPTICA

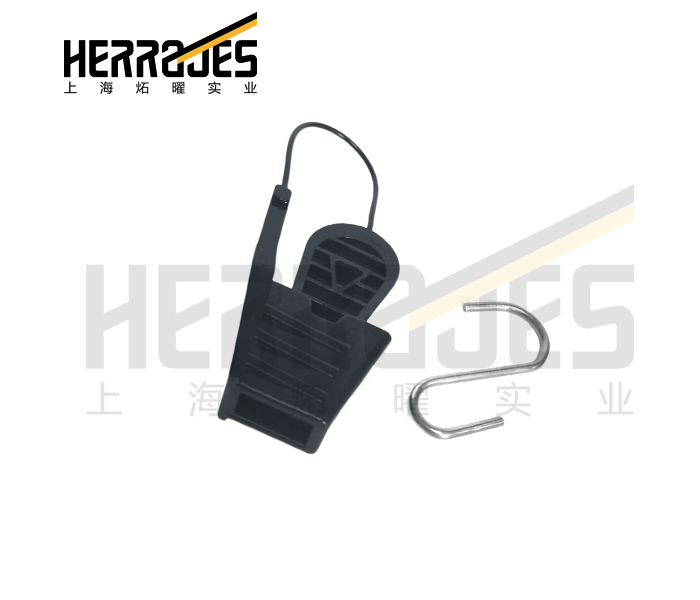

Tension clamp is designed for FTTH drop cable. The drop wire clamp is widely used both indoor and outdoor installation to connect a triplex overhead entrance cable to a devices or buildings.. Provided with a serrated shim to increase hold on drop wire. Used to support one and two pair telephone drop wire at span clamps, drive hooks, and various drop attachments. The Closed hook drop wire clamps can withstand the rigors of all environmental conditions in the telecommunications outside plant. The placement of slots and a hole in the clamp’s inner wedges allow for proper cable slack adjustment, tensioning and assistance with re-entry. The drop wire clamp is composed of a mandrel shaped body and an opened bail that can be locked into the clamp body. It is made out of UV resistant nylon and steel. All the assemblies passed the tensile tests, operation experience with temperatures ranging from – 60 °C up to +60 °C test, temperature-cycling test.

4.Product Details:

Type of thermoplastic material: Nylon PA66

UV protection: (ASTM G154-16 Cycle 1)

Hardware material: galvanized steel

High resistance to corrosion

Tensile strength: 0.7KN (min.)

Cable diameter and type of drop: Flat or round 2 X 4mm (Max.)

Storage and operating temperature range: -10°C to +60°C

Weight: 35g ±5g

Dimming once installed: <0.1dB
