Description
Technical Parameters and Drawings
| HE Code | Conductor(mm) | UTS(KN) | Dimensions(mm) | ||||||||
| A | B | C | D | ||||||||
| HEXGH-2 | 6-13 | 40 | 178 | 60 | 24 | 16 | |||||
| HEXGH-3 | 10-20 | 60 | 180 | 60 | 22 | 16 | |||||
| HEXGH-4 | 12.7-26 | 60 | 225 | 75 | 30 | 16 | |||||
| HEXGH-5 | 23-34 | 60 | 262 | 87 | 35 | 16 | |||||
| HEXGH-6 | 34-44 | 100 | 300 | 92 | 48 | 18 | |||||
|
Notes: 1. Tolerance: ±5% |
|||||||||||
| 2. All dimensions are in MM.
3. Material: Aluminum |
|||||||||||
| 4. Customized sizes are available at request. | |||||||||||
Product Description:
The above are typical only, please consult Shanghai Herrajes for further information. |
|||||||||||
| Product Details: | |||||||||||
| Name: HEXGH clevis suspension clamps, clevis suspension clamps for aluminum based conductors | |||||||||||
| HS code: 7616999000 | |||||||||||
| Model: ANSI/ASME | |||||||||||
| Package: bulk packing; palletized; as required | |||||||||||
| Trademark: HE, as required | |||||||||||
| Origin: China | |||||||||||
| Raw material: Aluminum, steel | |||||||||||
| Finish: HDG | |||||||||||
| ODM&OEM service: yes | |||||||||||
| Sample: available, FOC | |||||||||||
| Payment term: T/T, 30% prepayment and 70% balance against B/L | |||||||||||
| Certificate: ISO | |||||||||||
| Delivery time: 20-40 days | |||||||||||
| MOQ: 500kgs | |||||||||||
| Export term: FOB; CIF | |||||||||||
| Production capacity pcs/day: 2000 | |||||||||||
| Minimum tensile strength lbs.: 7000 | |||||||||||
| Length MM: 55
U bolt dia.: M10, M12,etc. |
|||||||||||

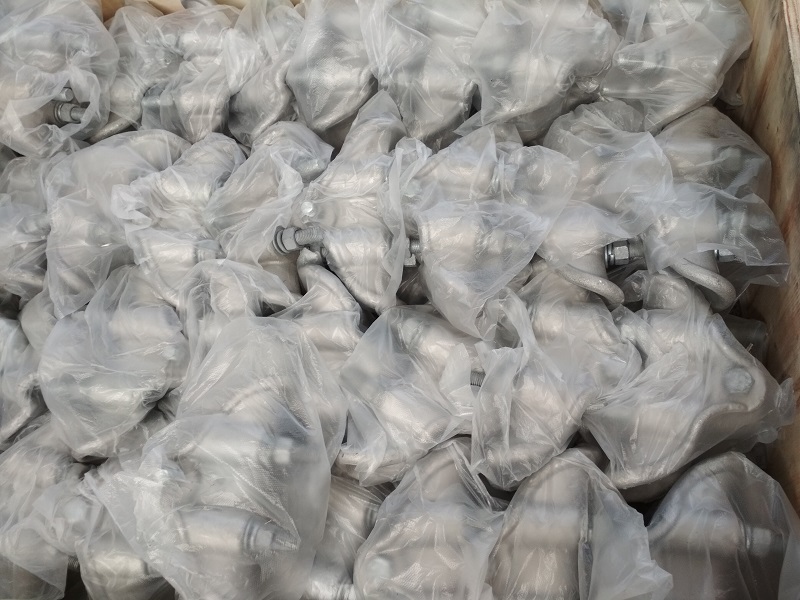

| Packaging:
|
|||||||||||
