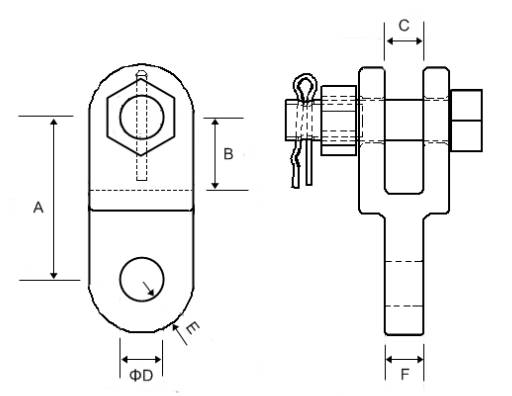

Technical Parameters and Drawings
| HE Code | Description | Dimensions | Wt. | Minimum failing load | |||||
| A | B | C | ΦD | E | F | kg | kN | ||
| CE-1 | Clevis eye | 72 | 28 | 20 | 18 | 22 | 16 | 0.7 | 70 |
| CE-2 | Clevis eye | 72 | 28 | 20 | 18 | 22 | 16 | 0.7 | 120 |
| CE-3 | Clevis eye | 86 | 35 | 24 | 22 | 24 | 20 | 1.1 | 160 |
Notes:
| 1. Tolerance: ±5% | |||||||
| 2. All dimensions are in MM except for marked. | |||||||
| 3. Finish: hot dip galvanized per ASTM A153 | |||||||
| 4. Customized sizes are available at request.
|
|||||||
Product Description:
|
|||||||
|

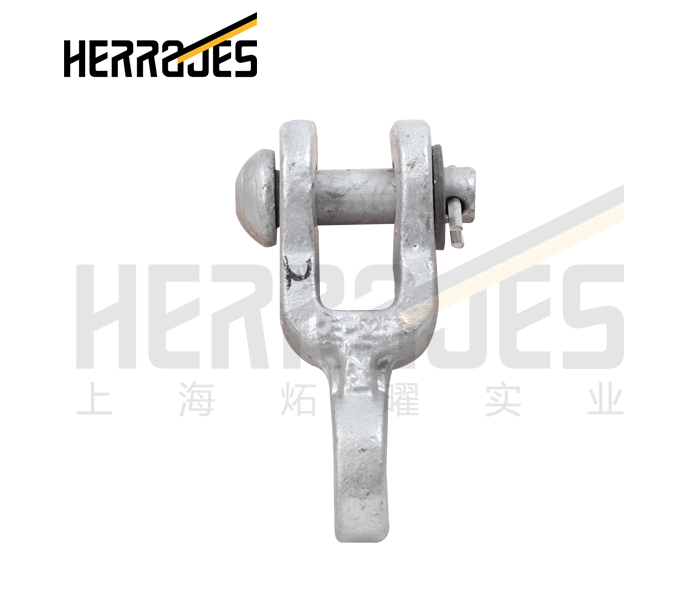

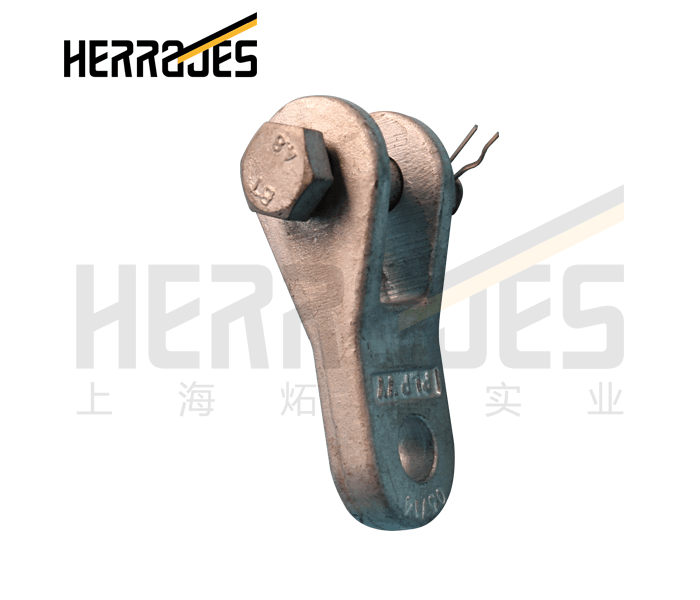

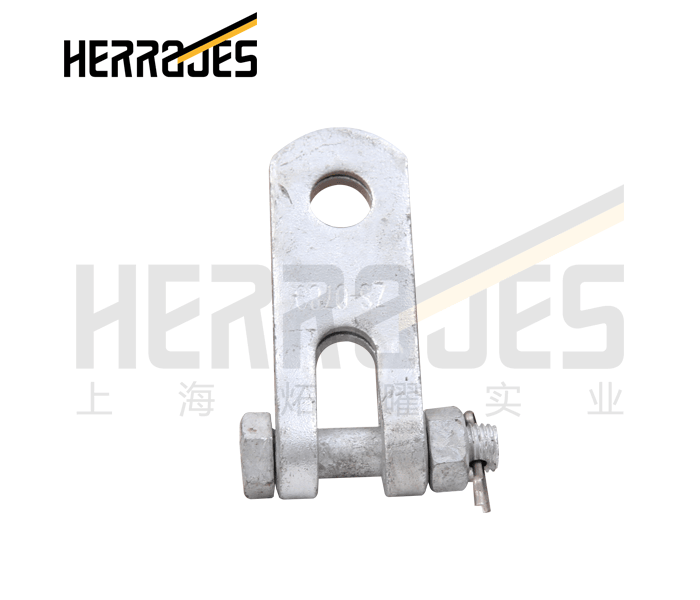

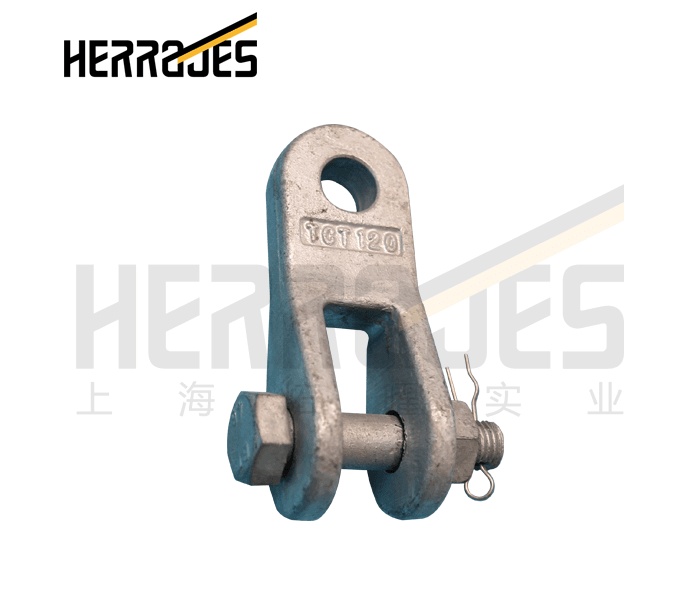

|||||||
| Product Details: | |||||||
| Name: clevis eyes, clevis tongue, twisted clevis eyes | |||||||
| HS code: 7326 | |||||||
| Model: AS1154.1 : 2004 | |||||||
| Package: bulk packing; palletized; as required | |||||||
| Trademark: HE, as required | |||||||
| Origin: China | |||||||
| Raw material: galvanized forged steel, stainless steel | |||||||
| Finish: hot dip galvanized | |||||||
| ODM&OEM service: yes | |||||||
| Sample: available, FOC | |||||||
| Payment term: T/T, 30% prepayment and 70% balance against B/L | |||||||
| Certificate: ISO | |||||||
| Delivery time: 20-40 days | |||||||
| MOQ: 500kgs | |||||||
| Export term: FOB; CIF | |||||||
| Production capacity pcs/day: 2000 | |||||||
| Minimum failing load kN: 160
Cotter bolt: M20 |
|||||||
