HEXZL Trunnion Suspension Clamps

Description

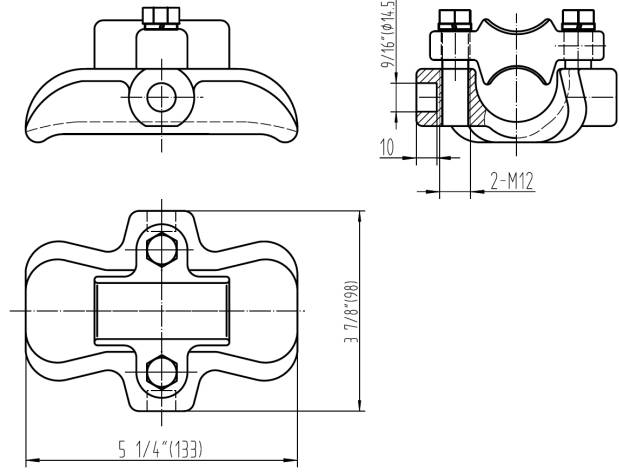

Technical Parameters and Drawings

Notes:

1. Tolerance: ±5%

2. All dimensions are in MM except for marked.

3. Material: steel, stainless steel

4. Customized sizes are available at request.

Product Description:

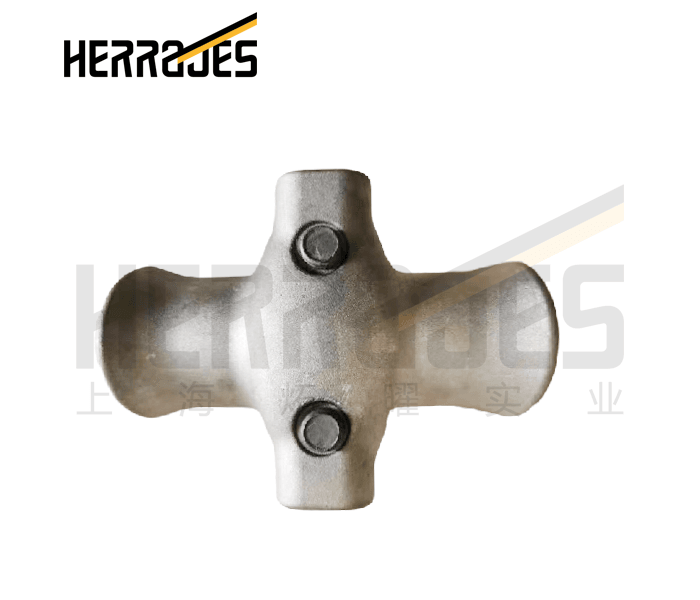

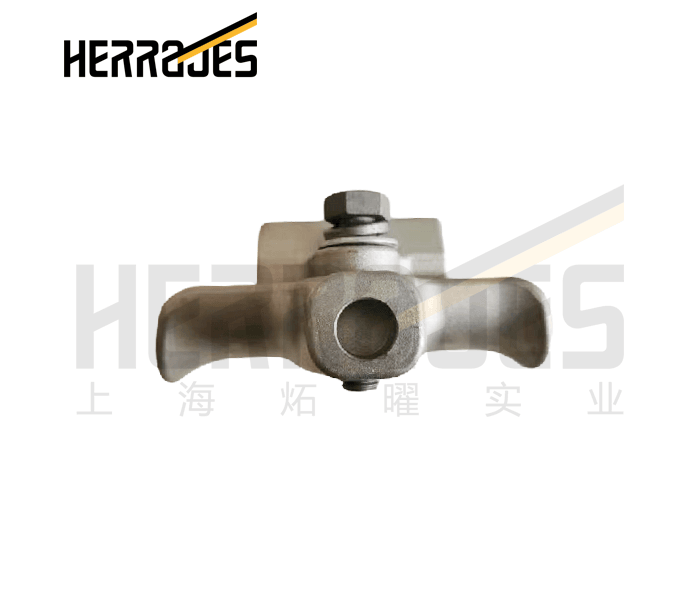

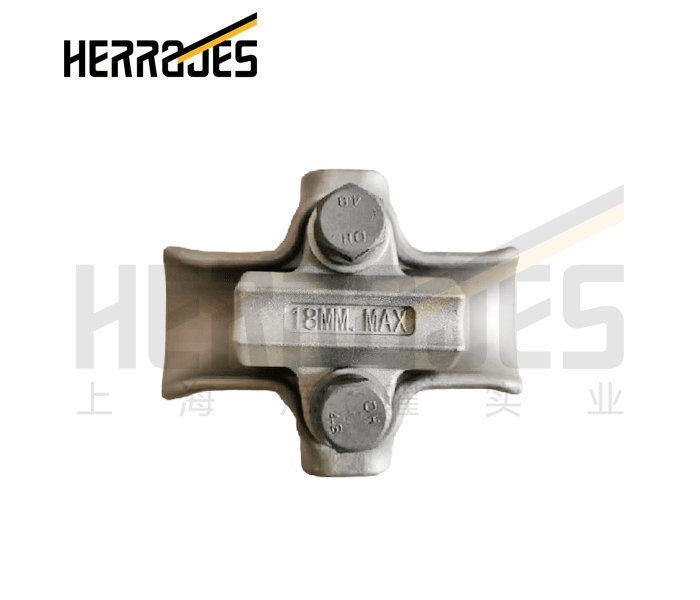

HEXZL trunnion suspension clamps are produced to attach main conductors to tap conductors, AAC and ACSR earth wires at suspension strings.

Clamps can be attached with preformed armor rods.

Angle max to 15°.

Aluminum alloy

Bolts carbon steel.

All iron parts are hot dip galvanized to ASTM A153.

The above are typical only, please consult Shanghai Herrajes for further information.

Product Details:

Name: CGU trunnion suspension clamps, trunnion suspension clamps, swiveling suspension clamp,

suspension clamps for copper and steel stranded, unlocking suspension clamps, swiveling earthing suspension clamp

HS code: 7616100000

Model: ANSI/ASME

Package: bulk packing; palletized; as required

Trademark: HE, as required

Origin: China

Raw material: galvanized steel

Finish: HDG

ODM&OEM service: yes

Sample: available, FOC

Payment term: T/T, 30% prepayment and 70% balance against B/L

Certificate: ISO

Delivery time: 20-40 days

MOQ: 500kgs

Export term: FOB; CIF

Production capacity pcs/day: 2000

Strength load Kn: 40

Length MM: 180, 22,etc.

Conductor dia. MM: 6-51mm
