Technical Parameters and Drawings
| HE Code | Dimensions | Designated size of coupling | Wt. | Rated failure load | ||||
| C | D | C2 | B | A | (kg) | (KN) | ||
| WS-7 | 18 | 19.2 | 34.5 | 16 | 70 | 16 | 0.97 | 70 |
| WS-10 | 20 | 19.2 | 34.5 | 18 | 85 | 16 | 1.7 | 100 |
| WS-12G | 20 | 19.2 | 34.5 | 18 | 85 | 16 | 1.7 | 120 |
| WS-12 | 24 | 23 | 42.5 | 22 | 90 | 20 | 3.81 | 120 |
| WS-12X | 24 | 19.2 | 34.5 | 22 | 90 | 16 | 3.1 | 120 |
| WS-12A | 20 | 19.2 | 34.5 | 22 | 85 | 16 | 1.8 | 120 |
| WS-16 | 26 | 23 | 42.5 | 24 | 95 | 20 | 2.64 | 160 |
| WS-20 | 30 | 27.5 | 51 | 27 | 100 | 24 | 4.3 | 200 |
| WS-20DF | 30 | 23 | 42.5 | 27 | 100 | 20 | 4.5 | 200 |
| WS-30 | 36 | 27.5 | 51 | 36 | 110 | 24 | 5.7 | 300 |
| WS-16G | 22 | 23 | 42.5 | 24 | 95 | 20 | 2.64 | 160 |
| WS-21G | 24 | 27.5 | 51 | 24 | 100 | 24 | 3.5 | 210 |
| WS-32G | 32 | 27.5 | 51 | 30 | 110 | 24 | 4.8 | 320 |
| WS-42G | 36 | 32 | 59 | 36 | 120 | 28 | 5.6 | 420 |
Notes:
| 1. Tolerance: ±5% | |||||||||
| 2. All dimensions are in MM except for marked. | |||||||||
| 3. Finish: hot dip galvanized per ASTM A153 | |||||||||
| 4. Customized sizes are available at request.
|
|||||||||
Product Description:
|
|||||||||
|

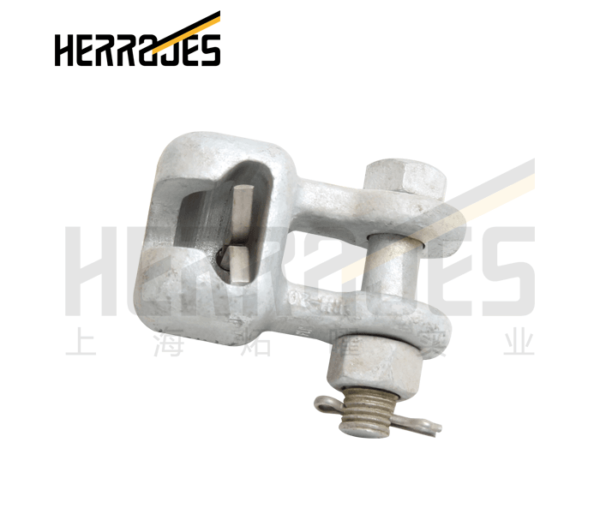

|||||||||
| Product Details: | |||||||||
| Name: socket eyes extension links, horn holder socket eyes, long socket tongue, long socket eyes, straight socket eyes | |||||||||
| HS code: 7326 | |||||||||
| Model: AS 1154.1 : 2004 | |||||||||
| Package: bulk packing; palletized; as required | |||||||||
| Trademark: HE, as required | |||||||||
| Origin: China | |||||||||
| Raw material: ASTM A536 | |||||||||
| Finish: hot dip galvanized | |||||||||
| ODM&OEM service: yes | |||||||||
| Sample: available, FOC | |||||||||
| Payment term: T/T, 30% prepayment and 70% balance against B/L | |||||||||
| Certificate: ISO | |||||||||
| Delivery time: 20-40 days | |||||||||
| MOQ: 500kgs | |||||||||
| Export term: FOB; CIF | |||||||||
| Production capacity pcs/day: 2000 | |||||||||
| Minimum failing load Kn: 71 | |||||||||
