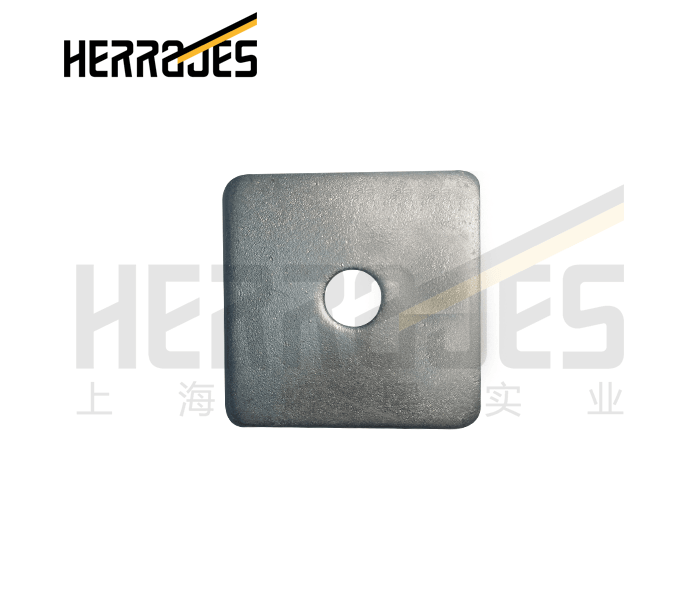

Square Washers

Contact on whatsapp

Description

Technical Parameters and Drawings

HE Code Dimensions(in) Wt./1000
A C ΦD Bolt dia. kg
SW1/2-2 2″ 1/8″ 9/16″ 1/2″ 58.97
SW5/8-2 2″ 1/8″ 11/16″ 5/8″ 54.43
SW5/8-2-1 2” 3/16” 11/16” 5/8″ 95.25
SW5/8-21/4 2 1/4″ 3/16″ 11/16″ 5/8″ 108.86
SW3/4-21/4 2 1/4″ 3/16″ 13/16″ 3/4″ 104.33
SW3/4-3 3″ 1/4″ 11/16″ 3/4″ 136.08
SW3/4-3-1 3″ 3/16″ 13/16″ 3/4″ 231.33
SW3/4-3-2 3″ 1/4″ 13/16″ 3/4″ 290.30
SW3/4-3-3 3″ 1/4″ 7/8″ 3/4″ 299.37
SW3/4-4 4″ 3/16″ 13/16″ 3/4″ 394.62
SW3/4-4-1 4″ 1/2″ 13/16″ 3/4″ 1070.47
SW3/4-4-2 4″ 1/4″ 7/8″ 3/4″ 544.31
SW7/8-4 4″ 1/4″ 15/16″ 7/8″ 535.24
SW1-4 4″ 1/2″ 1 1/8″ 1″ 1034.19



1. Tolerance: ±5%
2. All dimensions are in inch except for marked.

3. Material: carbon steel
4. Finish: hot dip galvanized
5. Customized sizes are available at request.






Product Description:

Square washers are produced for use on poles and crossarms to distribute the stress.
They prevent the crushing of wood fibers and protect the drilled holes. Square washers also provide alignment checking.
They are installed under bolts, nuts or rods to provide a broader bearing surface and increase the compression grip of the tightened nuts.
Square washers are produced in carbon steel SAE 1010 to 1020, hot dip galvanized to ASTM A-153.





The above are typical only, please consult Shanghai Herrajes for further information.






Product Details:
Name: square washers, square flat washers
HS code: 7318210001
Model: ANSI/ASME
Package: bulk packing; palletized; as required
Trademark: HE, as required
Origin: China
Raw material: carbon steel Q235
Finish: HDG
ODM&OEM service: yes
Sample: available, FOC
Payment term: T/T, 30% prepayment and 70% balance against B/L
Certificate: ISO
Delivery time: 20-40 days
MOQ: 500kgs
Export term: FOB; CIF
Production capacity pcs/day: 2000
Minimum tensile strength lbs.: 7000
Hole dia. in: 9/16, 11/16, 13/16, 15/16, 7/8, 1,etc.
For bolt dia. in: 1/2, 5/8, 3/4, 7/8, 1,etc.
