Description

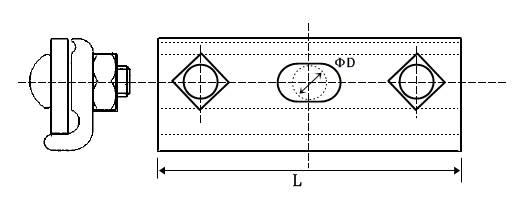

Technical Parameters and Drawings
| HE Code | Bolt qty | Bolt size | Dimensions | Wt. | ||
| L | ΦD | Strand size | kg | |||
| CSCS-1 | 1 | 5/8″ | 2 1/2″ | 11/16″ | 1/4″-7/16″ | 0.304 |
| CSCS-2 | 3 | 5/8″ | 5 5/8″ | 11/16″ | 1/4″-7/16″ | 0.807 |
| CSCS-3 | 3 | 5/8″ | 5 3/4″ | 11/16″ | 1/4″-7/16″ | 0.889 |
| CSCS-4 | 3 | 3/4″ | 5 5/8″ | 13/16″ | 5/16″-3/8″ | 0.962 |
| Notes:
1. Tolerance: ±5% |
|||||||||
| 2. All dimensions are in Inch except for marked.
3. Material: malleable iron |
|||||||||
| 4. Finish: hot dip galvanized | |||||||||
| 5. Customized sizes are available at request. | |||||||||
3.Product Description:
|
|||||||||
|
|||||||||
| 4.Product Details: | |||||||||

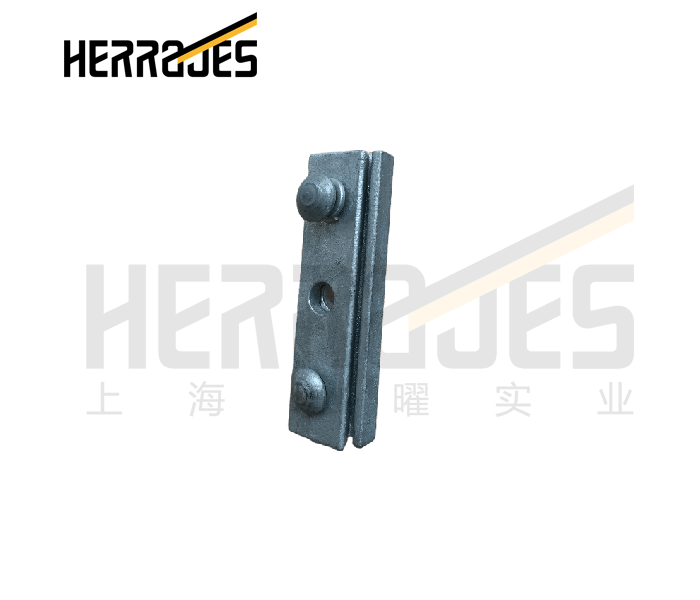

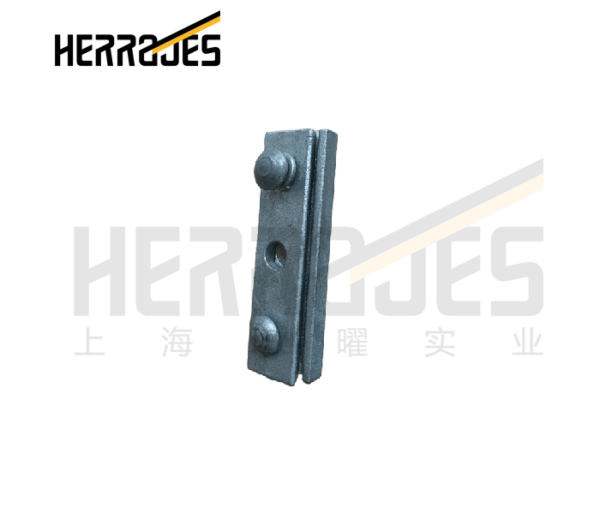

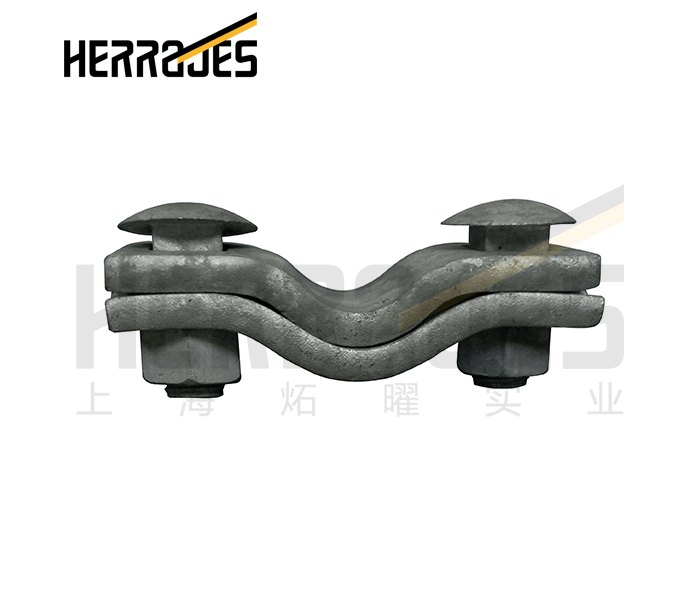

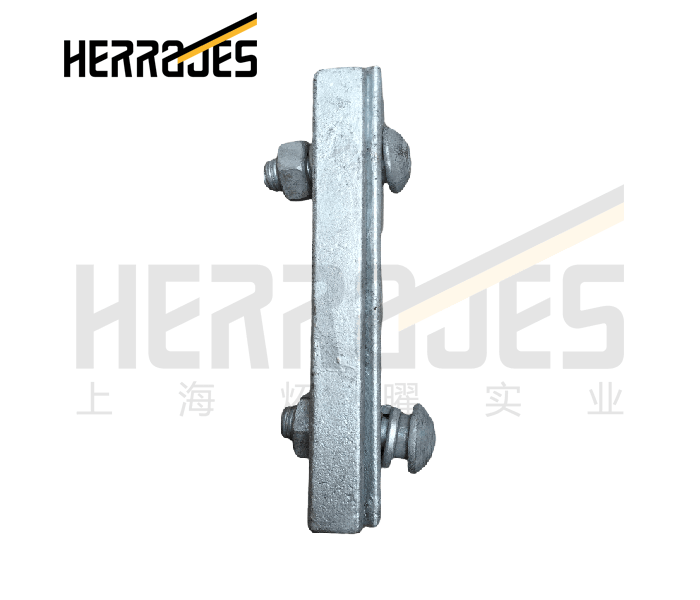

| Name: straight cable suspension clamps, crossover clamps, double groove ground clamps, corner messenger clamp | |||||||||
| HS code: 7616991090 | |||||||||
| Model: ANSI/ASME | |||||||||
| Package: bulk packing; palletized; as required | |||||||||
| Trademark: HE, as required | |||||||||
| Origin: China | |||||||||
| Raw material: malleable iron | |||||||||
| Finish: HDG | |||||||||
| ODM&OEM service: yes | |||||||||
| Sample: available, FOC | |||||||||
| Payment term: T/T, 30% prepayment and 70% balance against B/L | |||||||||
| Certificate: ISO | |||||||||
| Delivery time: 20-40 days | |||||||||
| MOQ: 500kgs | |||||||||
| Export term: FOB; CIF | |||||||||
| Production capacity pcs/day: 2000 | |||||||||
| Minimum tensile strength lbs.: 7000 | |||||||||
| Bolt dia. In.: 5/8, 3/4,etc.
Bolt qty: 1,3,etc. |
|||||||||
