Square Head Bolts

Contact on whatsapp

Description

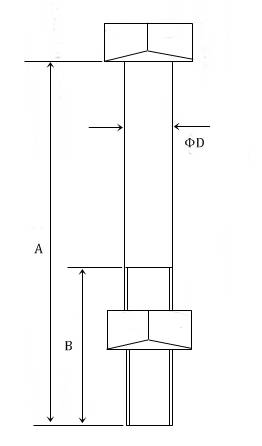

Technical Parameters and Drawings

HE Code Dimensions Wt./1000
A B Dia. ΦD kgs
SB3/8-2 2” (50.8) 1 3/4” (44.5) 3/8″(9.5) 32.60
SB3/8-3 3” (76.2) 2 3/4” (69.8) 3/8″(9.5) 46.70
SB3/8-4 4” (101.6) 3” (76.2) 3/8″(9.5) 68.04
SB3/8-41/2 4 1/2” (114.3) 3” (76.2) 3/8″(9.5) 78.02
SB3/8-5 5” (127) 3” (76.2) 3/8″(9.5) 85.27
SB3/8-51/2 5 1/2” (139.7 3” (76.2) 3/8″(9.5) 88.90
SB3/8-6 6” (152.4) 3” (76.2) 3/8″(9.5) 97.98
SB3/8-7 7” (177.8) 4” (101.6) 3/8″(9.5) 99.79
SB3/8-8 8” (203.2) 4” (101.6) 3/8″(9.5) 115.00
SB1/2-11/2 1 1/2” (38) 1″(25) 1/2″(12.7) 79.83
SB1/2-2 2” (50.8) 1 3/4” (44.5) 1/2″(12.7) 90.72
SB1/2-21/2 2 1/2″(63.5) 2 1/4″(57.1) 1/2″(12.7) 99.79
SB1/2-3 3” (76.2) 2 3/4” (69.8) 1/2″(12.7) 113.40
SB1/2-4 4” (101.6) 3” (76.2) 1/2″(12.7) 131.54
SB1/2-41/2 4 1/2” (114.3) 3” (76.2) 1/2″(12.7) 149.68
SB1/2-5 5” (127.0) 3” (76.2) 1/2″(12.7) 158.76
SB1/2-51/2 5 1/2” (139.7 3” (76.2) 1/2″(12.7) 170.10
SB1/2-6 6” (152.4) 3” (76.2) 1/2″(12.7) 176.90
SB1/2-7 7” (177.8) 4” (101.6) 1/2″(12.7) 217.72
SB1/2-8 8” (203.2) 4” (101.6) 1/2″(12.7) 222.26
SB1/2-9 9” (228.6) 4” (101.6) 1/2″(12.7) 258.55
SB1/2-10 10” (254.0) 6” (152.4) 1/2″(12.7) 272.15
SB1/2-12 12” (304.8) 6” (152.4) 1/2″(12.7) 322.05
SB1/2-14 14” (355.6) 6” (152.4) 1/2″(12.7) 331.12
SB1/2-16 16” (406.4) 6” (152.4) 1/2″(12.7) 371.94
SB5/8-2 2” (50.8) 1 3/4” (44.5) 5/8″(16) 154.22
SB5/8-3 3” (76.2) 2 3/4” (69.8) 5/8″(16) 143.00
SB5/8-4 4” (101.6) 3” (76.2) 5/8″(16) 182.00
SB5/8-5 5” (127.0) 3” (76.2) 5/8″(16) 272.15
SB5/8-6 6” (152.4) 3” (76.2) 5/8″(16) 312.98
SB5/8-7 7” (177.8) 4” (101.6) 5/8″(16) 340.19
SB5/8-8 8” (203.2) 4” (101.6) 5/8″(16) 353.80
SB5/8-9 9” (228.6) 4” (101.6) 5/8″(16) 381.02
SB5/8-10 10” (254.0) 6” (152.4) 5/8″(16) 449.05
SB5/8-12 12” (304.8) 6” (152.4) 5/8″(16) 508.02
SB5/8-14 14” (355.6) 6” (152.4) 5/8″(16) 571.52
SB5/8-16 16” (406.4) 6” (152.4) 5/8″(16) 607.81
SB5/8-18 18” (457.2) 6” (152.4) 5/8″(16) 675.85
SB5/8-20 20” (508.0) 6” (152.4) 5/8″(16) 743.89
SB5/8-22 22” (558.8) 6” (152.4) 5/8″(16) 798.32
SB5/8-24 24” (609.6) 6” (152.4) 5/8″(16) 879.96
SB3/4-2 2” (50.8) 1 3/4” (44.5) 3/4″(19) 159.00
SB3/4-6 6” (152.4) 3” (76.2) 3/4″(19) 385.00
SB3/4-7 7” (177.8) 4” (101.6) 3/4″(19) 440.00
SB3/4-8 8” (203.2) 4” (101.6) 3/4″(19) 571.52
SB3/4-9 9” (228.6) 4” (101.6) 3/4″(19) 554.00
SB3/4-10 10” (254.0) 6” (152.4) 3/4″(19) 698.53
SB3/4-12 12” (304.8) 6” (152.4) 3/4″(19) 752.96
SB3/4-14 14” (355.6) 6” (152.4) 3/4″(19) 852.75
SB3/4-16 16” (406.4) 6” (152.4) 3/4″(19) 1020.58
SB3/4-18 18” (457.2) 6” (152.4) 3/4″(19) 1052.33
SB3/4-20 20” (508.0) 6” (152.4) 3/4″(19) 1143.05
SB3/4-22 22” (558.8) 6” (152.4) 3/4″(19) 1215.62
SB3/4-24 24” (609.6) 6” (152.4) 3/4″(19) 1378.91
SB3/4-26 26” (660.4) 6” (152.4) 3/4″(19) 1397.06
SB3/4-28 28” (711.2) 6” (152.4) 3/4″(19) 1450.00
SB3/4-30 30” (762.0) 6” (152.4) 3/4″(19) 1520.00
SB7/8-12 12” (304.8) 6” (152.4) 7/8″(22) 998.00
SB7/8-14 14” (355.6) 6” (152.4) 7/8″(22) 1288.20
SB7/8-16 16” (406.4) 6” (152.4) 7/8″(22) 1433.34
SB7/8-18 18” (457.2) 6” (152.4) 7/8″(22) 1596.64
SB7/8-20 20” (508.0) 6” (152.4) 7/8″(22) 1769.00
SB7/8-22 22” (558.8) 6” (152.4) 7/8″(22) 1927.76
SB7/8-24 24” (609.6) 6” (152.4) 7/8″(22) 2050.23







Notes:

1. Tolerance: ±5%
2. All dimensions are in inch except for marked.

3. Material: carbon steel
4. Finish: hot dip galvanized

5. Head mark customizable
6. Customized sizes are available at request.






Product Description:

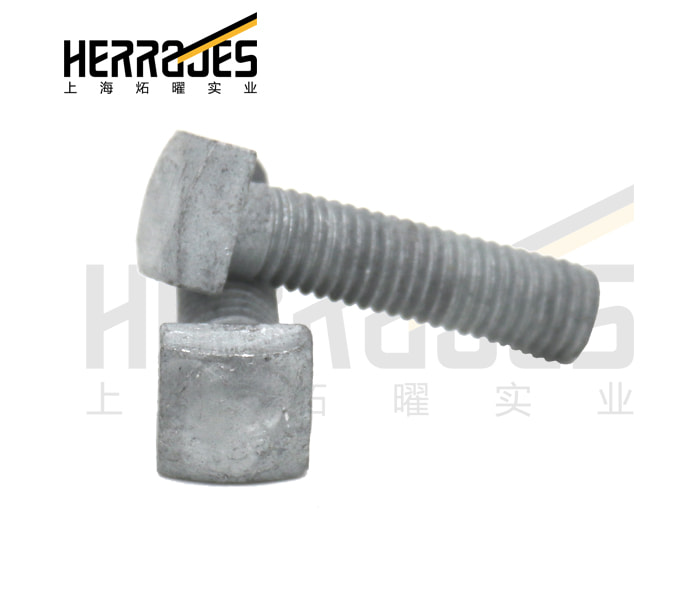

Square bolts are generally used to attach crossarms, also called crossarm bolts or through bolts.
Bolts can be supplied with two square nut assembled at customers’ requirement.  One nut is used to fasten the square head bolt to the pole and the other nut is used to secure a straight or angle cable suspension clamp to the bolt.
Bolts have chamfered or rounded ends. Rolled coarse threads.
Bolts are made of high quality carbon steel SAE 1010 to 1020, hot dip galvanized to ASTM A153, tested according standard IEEE C-135.1.


The above are typical only, please consult Shanghai Herrajes for further information.


Product Details:
Name: square bolts, square head bolts, crossarm bolts
HS code: 7318151090
Model: CSA, DIN, ANSI/ASME
Package: bulk packing; palletized; as required
Trademark: HE, as required
Origin: China
Raw material: carbon steel Q235
Finish: HDG
ODM&OEM service: yes
Sample: available, FOC
Payment term: T/T, 30% prepayment and 70% balance against B/L
Certificate: ISO
Delivery time: 20-40 days
MOQ: 500kgs
Export term: FOB; CIF
Production capacity pcs/day: 2000
Minimum tensile strength lbs.: 4250
Overall length in: 2 – 28
Bolt Dia. in: 3/8, 1/2, 5/8, 3/4, 7/8,ect.
