Yoke Plates

Contact on whatsapp

Description

Technical Parameters and Drawings

HE Code Dimensions(mm) Wt. Rated failure load
D1 D2 A L ΦR1 ΦR2 (kg) (kN)
YPL-1 16 16 70 400 20 18 4.43 100
YPL-2 16 16 70 400 24 18 4.66 120
YPL-3 18 18 100 400 26 20 5.8 160
YPL-4 18 18 100 400 30 20 6.9 200
YPL-5 16 26 100 520 30 26 8 200
YPL-6 16 26 200 550 30 24 11.8 200
YPL-7 16 30 110 400 33 24 9 250
YPL-8 18 32 110 400 39 26 10 300
YPL-9 24 38 110 550 45 30 24.4 420
YPL-10 30 38 110 400 45 33 14.8 500
YPL-11 32 42 200 150 51 39 25.5 600
YPL-12 32 42 250 500 51 39 23.3 600





HE Code Description Wt. kg Rated ultimate strength
kg lbs
YPT-1 Rectangular plate 20 3000





Below is available upon request:





Notes:

1. Tolerance: ±5%
2. All dimensions are in MM except for marked.
3. Finish: hot dip galvanized per ASTM A153
4. Customized sizes are available at request.







Product Description:

Yoke plates are produced to use on transmission lines and to keep the distance of the bundled conductors at insulator strings and joint the eye-ended parts by compression lugs.

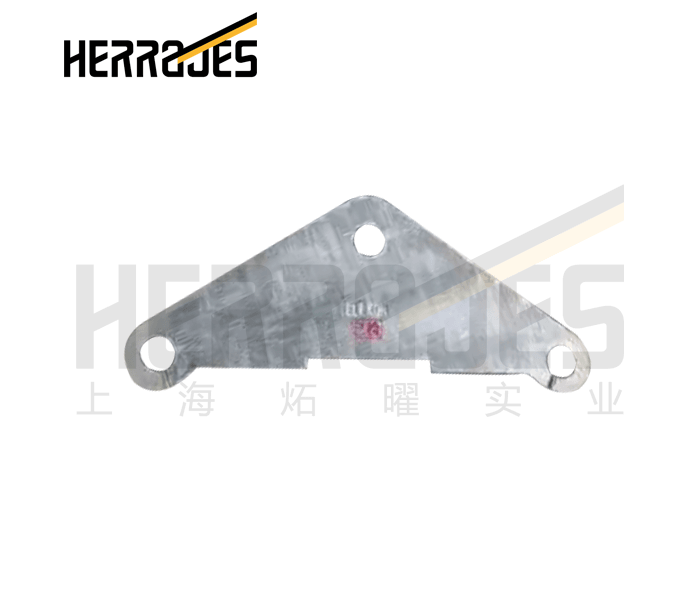

Standard triangular plate has 3 holes only.

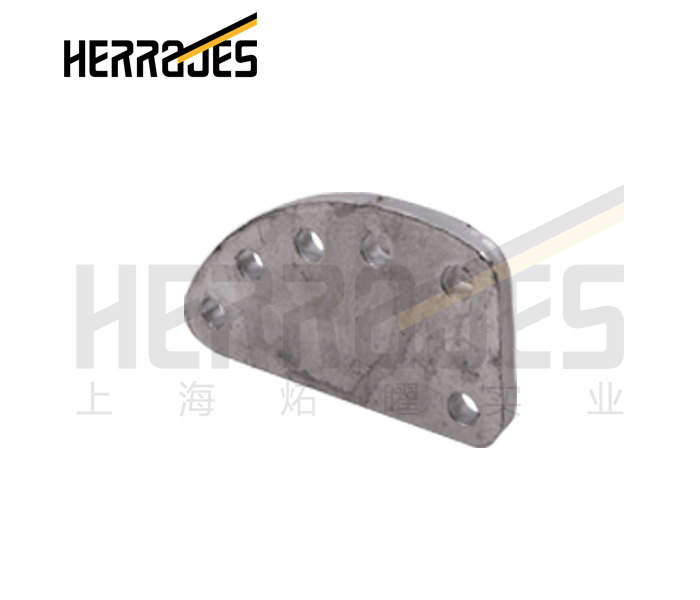

Triangular and rectangular plates are available with various hole spacing and thickness to suit either tension or suspension applications.
Eye according to IEC 471.
Material steel is hot dip galvanized.







The above are typical only, please consult Shanghai Herrajes for further information.



Product Details:
Name: yoke plates, lift plates, triangular plates, maintenance tension links, load plates, L yoke plates
HS code: 7326
Model: AS 1154.1 : 2004
Package: bulk packing; palletized; as required
Trademark: HE, as required
Origin: China
Raw material: steel
Finish: hot dip galvanized
ODM&OEM service: yes
Sample: available, FOC
Payment term: T/T, 30% prepayment and 70% balance against B/L
Certificate: ISO
Delivery time: 20-40 days
MOQ: 500kgs
Export term: FOB; CIF
Production capacity pcs/day: 2000
Minimum failing load Kn: 70

Standard holes: 3
