1. What are Spacer Dampers?

Spacer dampers are essential overhead transmission line components designed to maintain conductor separation while simultaneously controlling wind-induced vibrations in bundled conductor systems.

Spacer dampers combine the function of a spacer in maintaining conductor separation and the function of a damper in controlling aeolian vibration and oscillation. The viscoelastic bushings firmly grip the conductor. These dual-function devices eliminate the need for installing separate additional vibration dampers on transmission and distribution lines.

Key Functions:

• Conductor Spacing: Maintains uniform distance between sub-conductors in bundle configurations
• Vibration Damping: Absorbs wind-induced energy to prevent conductor fatigue
• Oscillation Control: Manages both aeolian vibration and wake-induced oscillation
• Fatigue Resistance: Extends conductor lifespan by reducing repetitive motion stress

2. How Elastomer Damping Technology Works

Damping Mechanism

When conductors experience wind-induced motion, the elastomer damping elements deform and absorb the vibration energy, converting it into harmless heat. This prevents the conductors from oscillating at frequencies that could cause material fatigue and premature failure.

Types of Conductor Motion Controlled

① Aeolian Vibration (Wind-Induced Oscillation)

• High-frequency, low-amplitude motion
• Caused by wind velocities between 2-15 mph
• Most common and damaging vibration type
• Results in cumulative micro-fatigue leading to conductor strand breakage over months/years

②. Wake-Induced Oscillation (Galloping)

• Low-frequency, high-amplitude motion
• Occurs when leeward conductors are shielded by windward conductors
• Particularly problematic in bundle conductor systems
• Can lead to conductor clashing and insulator damage

Engineering Design Features

The spacer damper is designed to maintain the original geometry of the bundle system against loads. It must also restore the bundle to normal posture after experiencing severe loads due to short-circuit currents, ice and wind.

Our spacer dampers feature:

• Optimized arm angles for uniform stiffness in all directions
• Lightweight construction for maximum mobility at high vibration frequencies
• Elastomer-lined clamps providing firm yet non-damaging conductor grip
• Advanced bolt systems with anti-loosening mechanisms

3.  Why Spacer Dampers Matter

Core Features

Elastomer Damping Elements
The spacer dampers feature elastomer damping elements engineered to absorb maximum energy. Our elastomer technology provides superior energy absorption compared to traditional spring or cable-based damping systems.

Conductor Protection
Both nut cracker and cantilever clamp type designs provide a firm but gentle and permanent grip while protecting the conductor against the local static and dynamic stresses occurring during normal operation conditions.

Lightweight Design
Our spacer dampers minimize weight while maintaining exceptional performance. This reduces the overall load on transmission structures and simplifies installation procedures.

Key Benefits

①Extended Conductor Lifespan

• Reduces fatigue-induced breaks by 40-60%
• Protects expensive ACSR and high-temperature conductors
• Minimizes maintenance costs

②Simplified Installation

• No additional Stockbridge dampers required
• Quick-disconnect bolt systems
• Field-friendly installation procedures

③Cost Efficiency
This design provides the greatest possible resistance to conductor fatigue by eliminating the need for additional vibration dampers.

④All-Condition Performance

• Effective in extreme temperature ranges
• Resistant to ice loading and short-circuit currents
• Performs consistently in high-wind environments

⑤Thermal Stability

• Standard versions rated for 125°C continuous operation
• High-temperature versions available for 250°C service
• Maintains damping effectiveness across full thermal range

4. Technical Specifications

Material Composition

Frame & Clamps:

• Aluminum alloy or hot-dip galvanized steel
• High-strength wrought materials (superior to cast components)
• Superior corrosion resistance

Damping Elements:

• Specialized elastomer compounds
• Neoprene or equivalent polymeric materials
• Engineered for optimal hysteresis characteristics

Fastening Systems:

• High-strength 1/4-turn fasteners
• Self-locking mechanisms to prevent vibration-induced loosening
• Breakaway bolt design for installation safety

Performance Ratings

Damping Characteristics

• Damping Ratio: Engineered for optimal energy dissipation
• Natural Frequencies: Designed to avoid conductor nodal points
• Stiffness Ratio: Maximum 10:1 directional stiffness variance (typically much lower)
• Response: Effective from aeolian frequencies (5-15 Hz) to wake-induced frequencies (0.5-2 Hz)

---

5. Bundle Configurations | Available Options

Our spacer dampers are manufactured for all standard conductor bundle types used in transmission and distribution systems:

Dual/Twin Bundle

• Two sub-conductors
• Ideal for distribution lines
• Compact frame design

Tri Bundle

• Three sub-conductors
• Common in transmission systems
• Triangular clamp arrangement

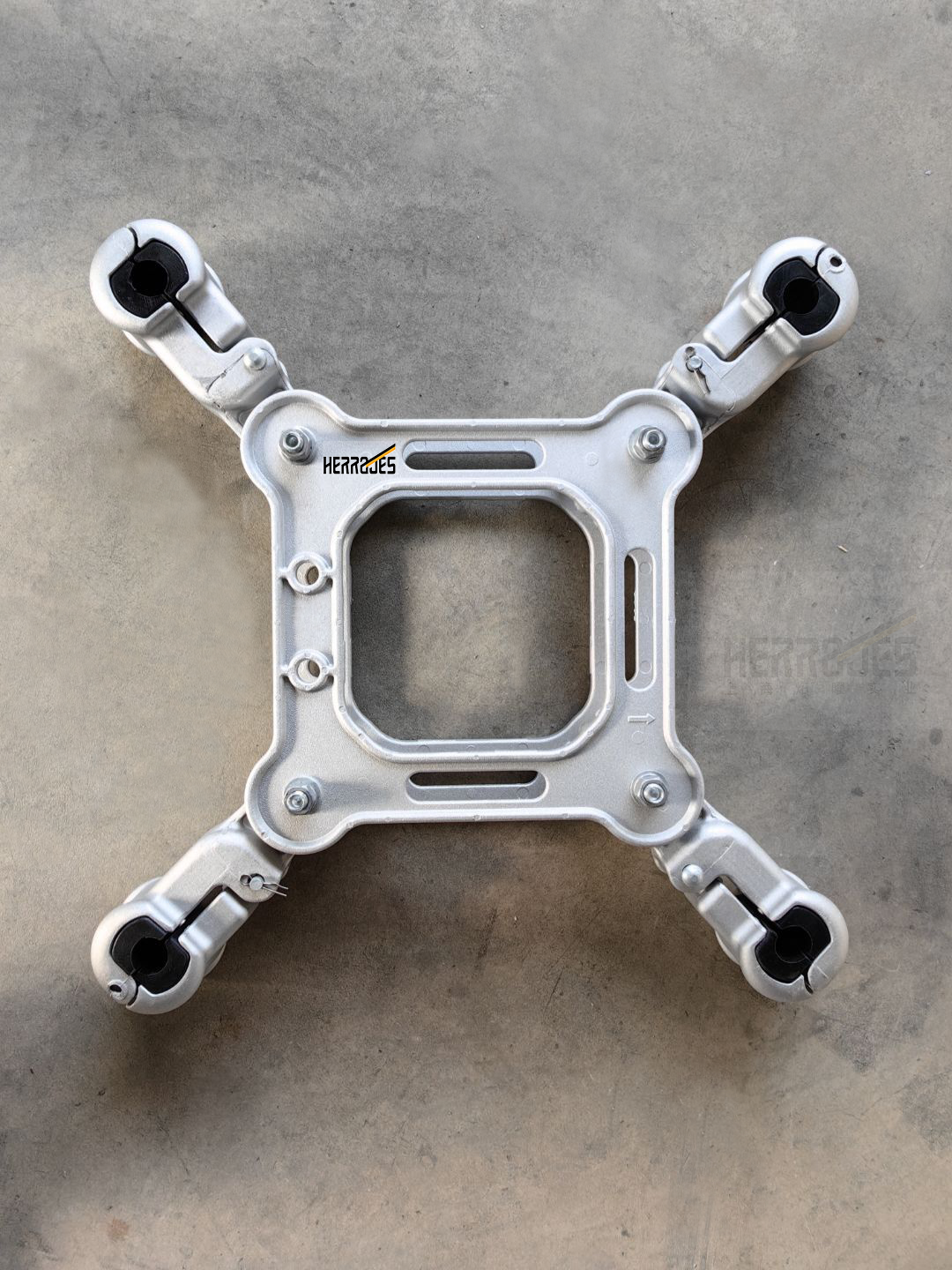

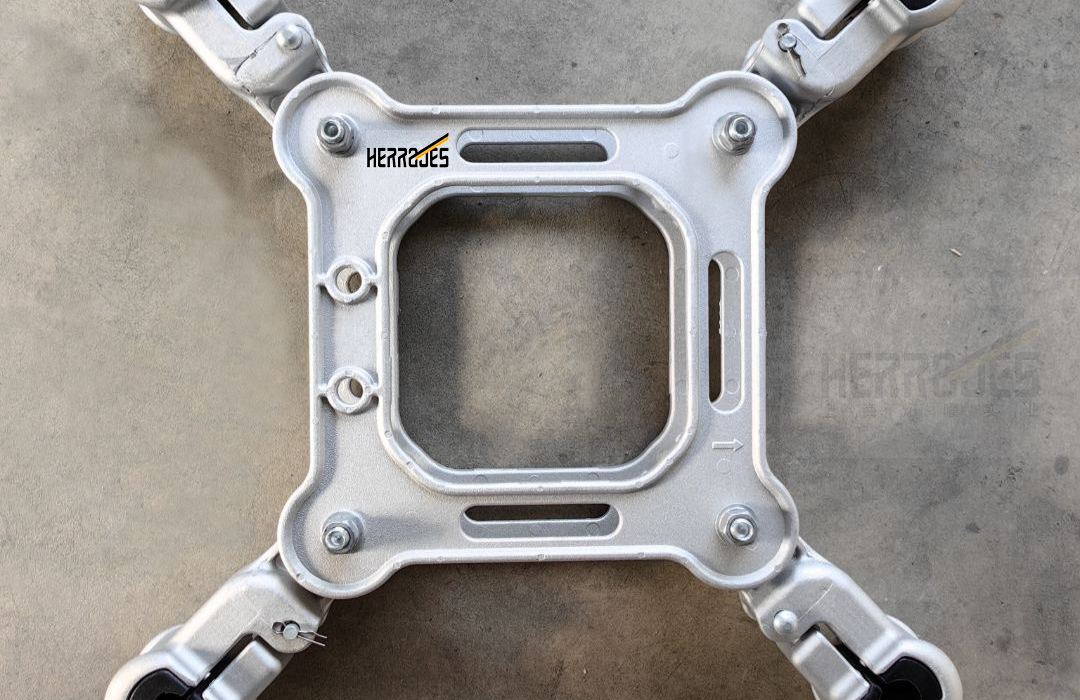

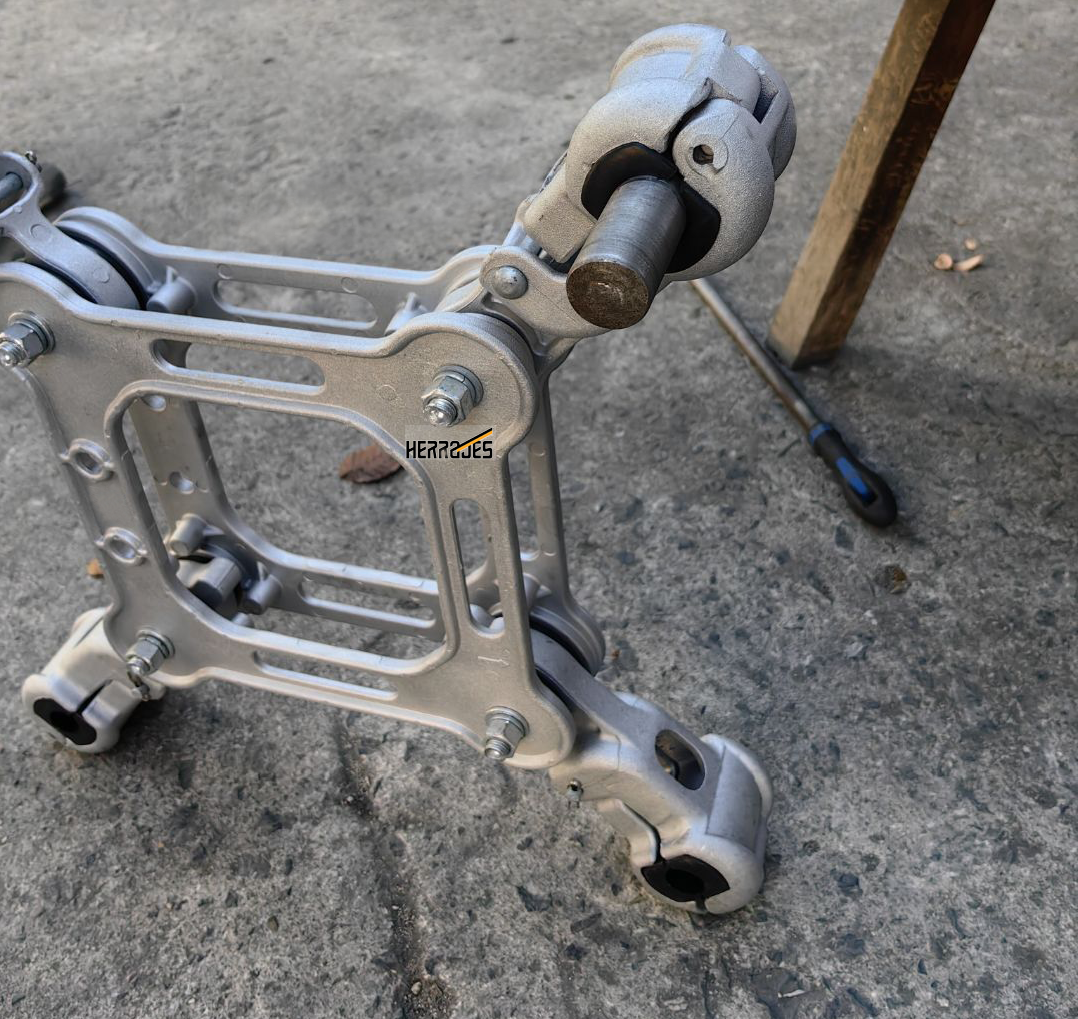

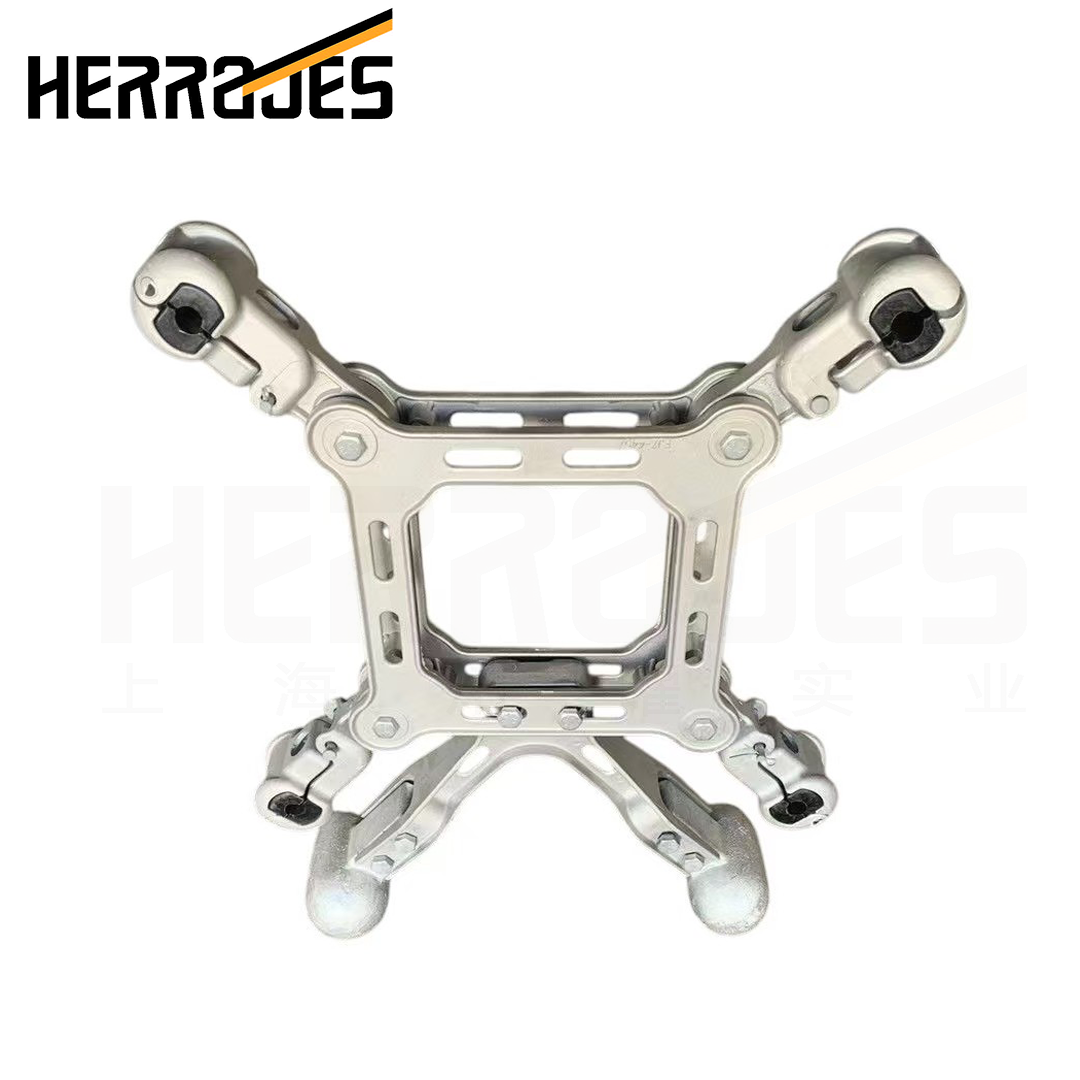

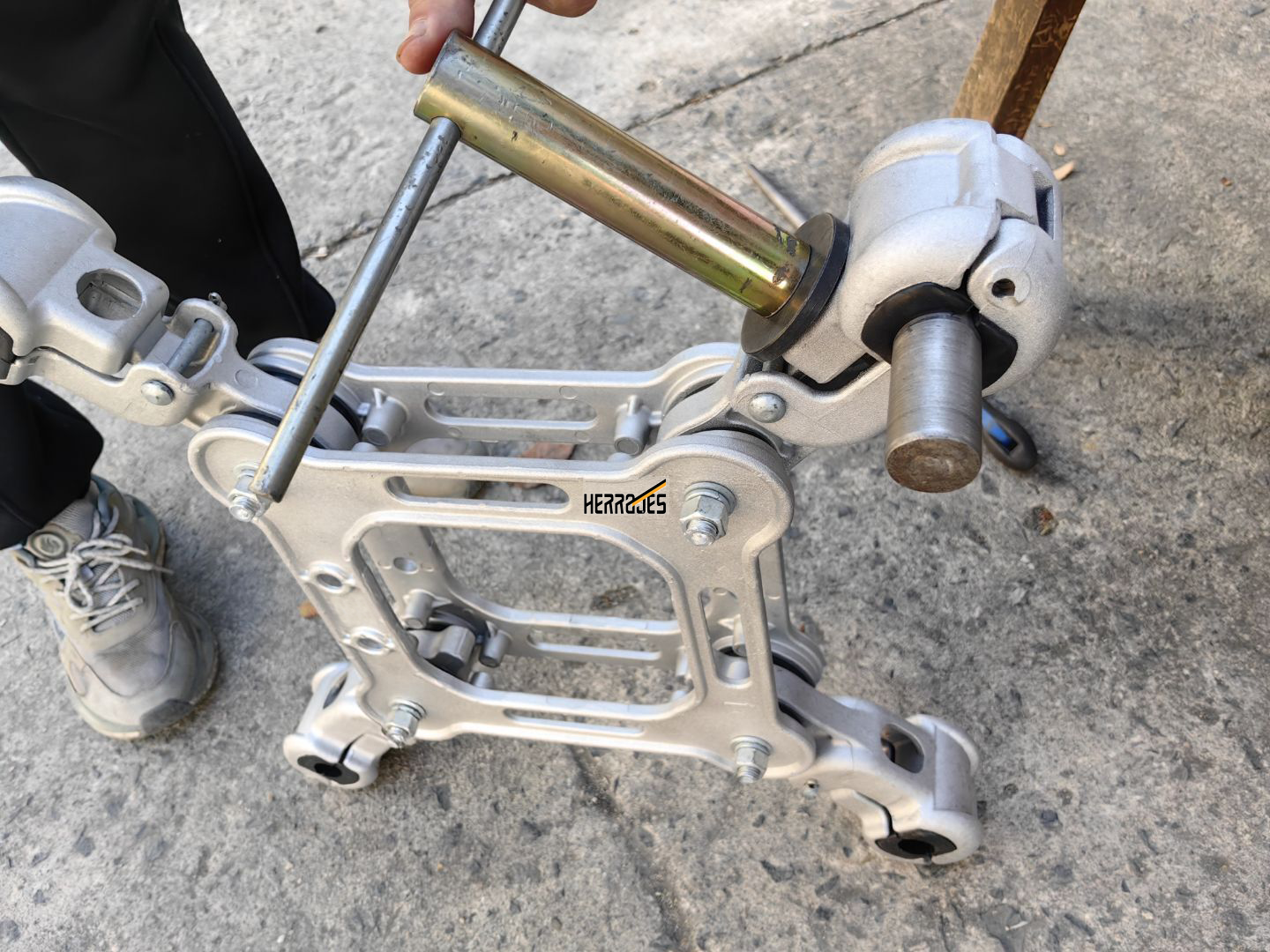

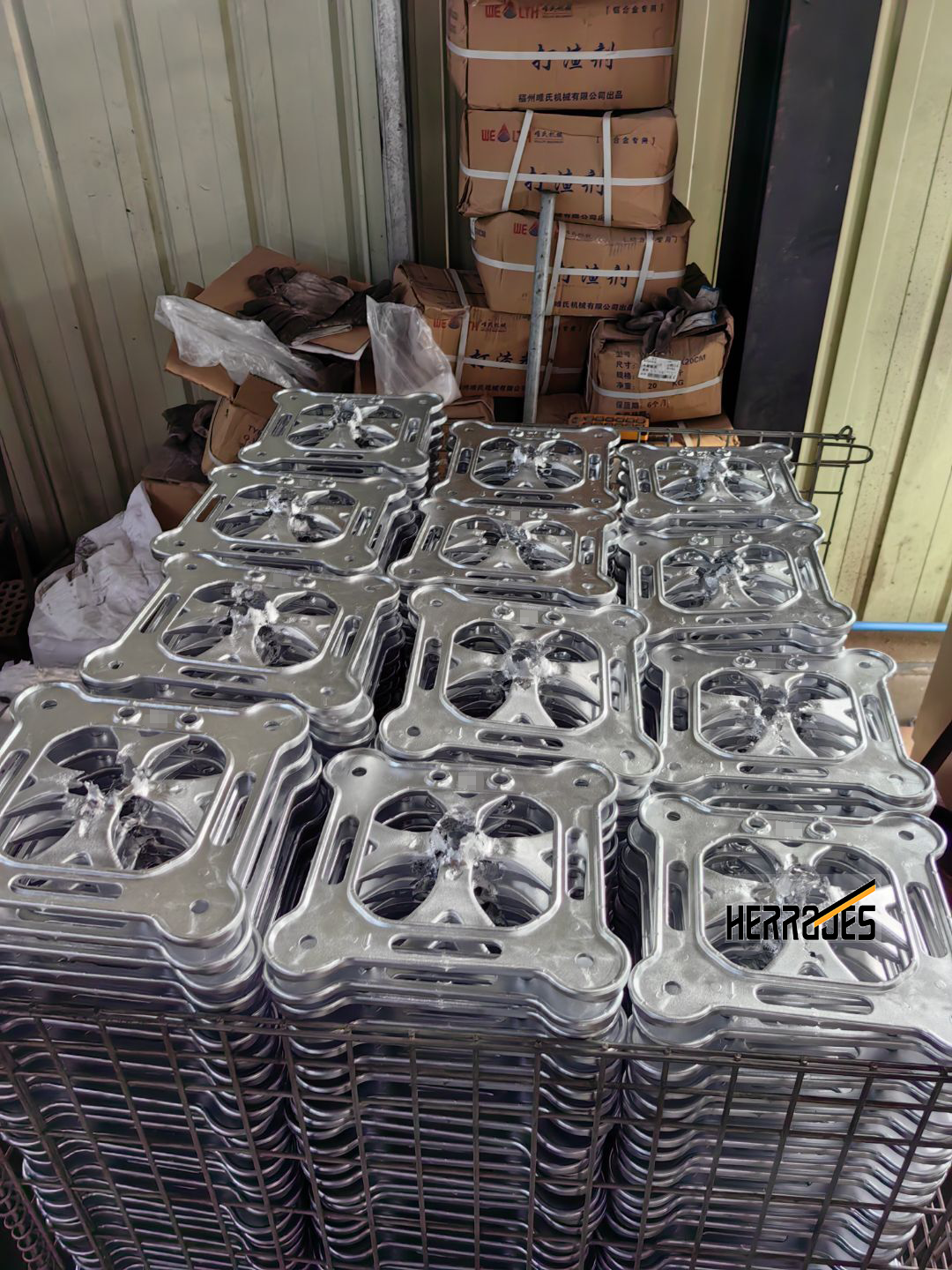

Quad Bundle

• Four sub-conductors
• Standard for high-voltage transmission
• Square frame configuration
• Most popular configuration globally

Hex Bundle

• Six sub-conductors
• Ultra-high-voltage applications
• Complex damping requirements
• Premium performance variants available

Each configuration is engineered with specific arm angles and frame geometries optimized for that bundle’s vibration characteristics.

---

6. Installation & Maintenance | Field Procedures

Installation Process

1. Preparation
   • Inspect conductor for damage
   • Clean clamp surfaces
   • Assemble damper components
2. Positioning
   • Place damper at designed span location
   • Align clamps with sub-conductors
   • Ensure proper orientation
3. Fastening
   • Insert conductors into elastomer-lined clamps
   • Tighten fasteners using specified torque
   • Verify secure installation
4. Verification
   • Check all bolt tightness
   • Confirm proper clearances
   • Inspect for contact with other hardware

Maintenance Requirements

Routine Inspection (Annual)

• Visual examination for visible damage
• Verification of bolt tightness
• Check for elastomer degradation

Periodic Maintenance (3-5 years)

• Re-torque bolts if necessary
• Clean debris accumulation
• Replace damaged elastomer elements if needed

End-of-Life Indicators

• Elastomer hardening or cracking
• Clamp slippage on conductors
• Bolt corrosion or loosening
• Visible frame damage

---

7. Industry Standards & Compliance

International Standards

Our products meet or exceed:

• IEC 61854 – International standard for overhead line spacers and spacer dampers
• ANSI C29.1 – American Standard for spacer dampers
• AS 1154 – Australian Standard for transmission line spacers
• National Grid Company Specifications – UK ultra-stringent requirements
• IEEE 563 – Guide on conductor self-damping measurements

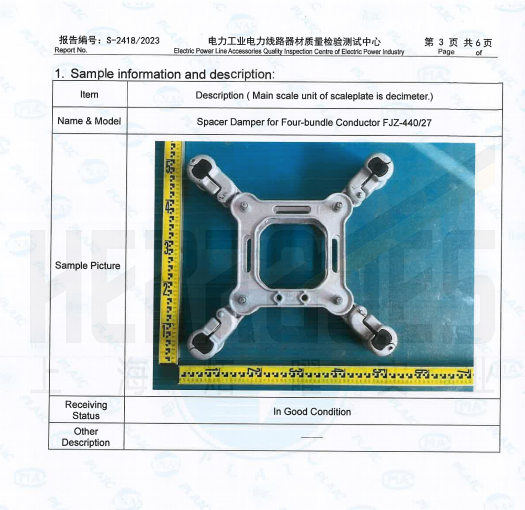

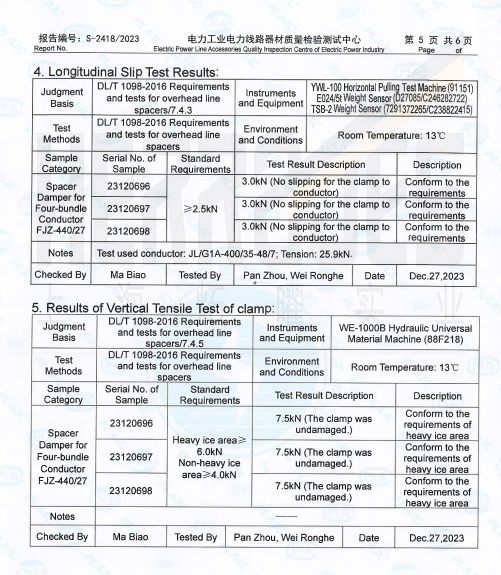

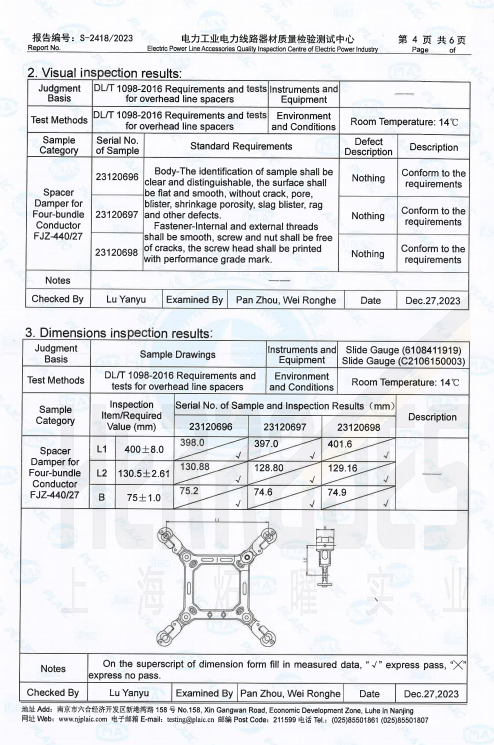

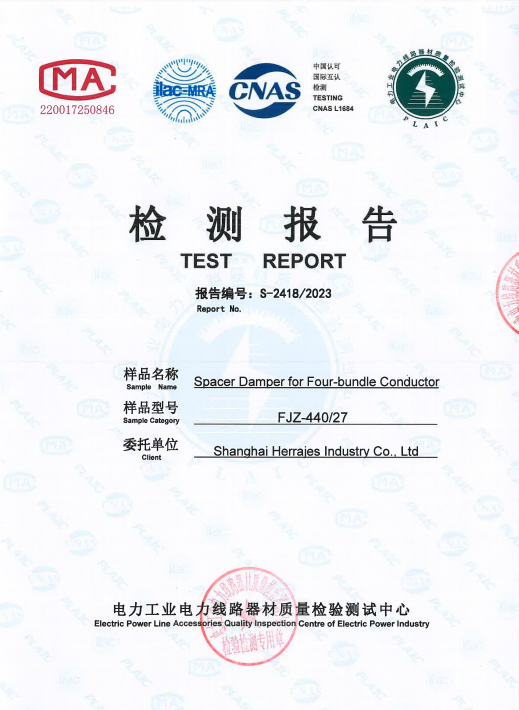

Testing & Verification

Our dampers undergo rigorous laboratory testing including:

• Vibration resistance testing – Aeolian and wake-induced oscillation
• Thermal cycle testing – Temperature extremes and cycling
• Mechanical load testing – Short-circuit current and ice loading
• Fatigue testing – Extended operational life validation
• Environmental testing – Corrosion and weathering resistance




8. Applications | Where Spacer Dampers are Used

Transmission Systems

• 115 kV – 765 kV overhead transmission lines
• Bundle conductor installations
• High-voltage long-span crossings

Distribution Systems

• 34 kV – 138 kV distribution lines
• Horizontal bundle configurations
• Pole-to-pole installations

Special Applications

• River crossings – Long spans requiring maximum vibration control
• Coastal installations – High-wind environments
• Mountain terrain – Turbulent wind exposure
• Urban congestion zones – Space-constrained environments
• High-temperature corridors – Industrial areas with elevated ambient temperatures

Conductor Types Protected

• ACSR (Aluminum Conductor Steel Reinforced)
• AAAC (All Aluminum Alloy Conductor)
• ACAR (Aluminum Conductor Alloy Reinforced)
• ACSS (Aluminum Conductor Steel Supported)
• ACSS/TW (Aluminum Conductor Steel Supported with Thermal-resistant Wrapping)

9. Why Choose Shanghai Herrajes Industry ？

Manufacturing Excellence

Shanghai Herrajes Industry Co., Ltd is a professional transmission and distribution (T&D) components manufacturer with specialized expertise in spacer damper production.

Our advantages include:

① Advanced Engineering Capabilities

• Custom design for specific bundle configurations
• Finite element analysis (FEA) for optimal performance
• Computer-aided manufacturing for precision

② Quality Assurance

• 100% component inspection
• Independent laboratory testing
• ISO 9001 certified manufacturing processes
• Full compliance with international standards

③ Material Excellence

• Premium aluminum alloy and steel selections
• Hot-dip galvanization for extended corrosion protection
• High-grade elastomer compounds
• Verified material certifications

④Cost-Competitive Pricing

• Efficient manufacturing processes
• Direct supply without middlemen
• Volume-based pricing opportunities
• Competitive lead times

⑤ Complete Product Range
We manufacture:

• Spacer Dampers (Dual, Tri, Quad, Hex configurations)
• Cross Arms (Steel and composite)
• Ceramic Insulators (Pin, post, suspension types)
• Hot-Dip Galvanized Iron Components (Custom fittings)
• Aluminum Alloy Cable Protective Covers (Weather-resistant guards)
• Suspension Clamps
• Stay Plates
• Ball & Socket Fittings

⑥ Professional Support

• Technical consulting for line design
• Custom engineering solutions
• Installation guidance and documentation
• Comprehensive warranty programs
• After-sales technical support

⑦ Global Delivery

• Reliable shipping to worldwide locations
• Customs-cleared documentation
• Secure packaging and logistics
• Rapid order fulfillment

---

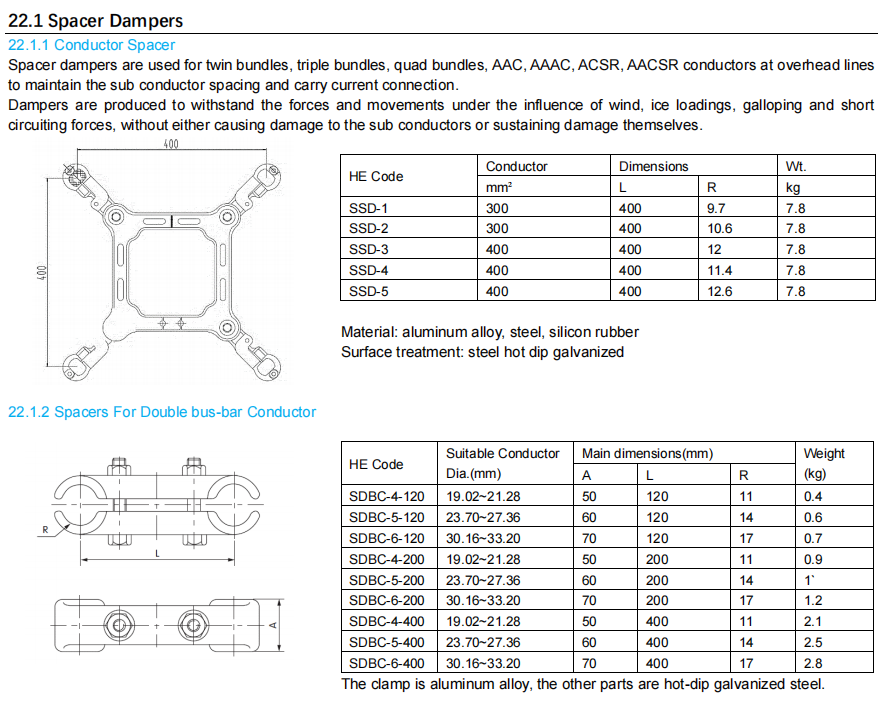

Product Specifications Summary

Spacer Dampers – Key Parameters

---

How to Specify Your Spacer Damper？！

When contacting Shanghai Herrajes Industry for quotation, please provide:

1. Bundle Configuration – Dual, Tri, Quad, or Hex
2. Conductor Type – ACSR, AAAC, ACSS, etc.
3. Conductor Diameter – Size in mm or AWG
4. Line Voltage – Operating voltage (kV)
5. Quantity – Number of units required
6. Temperature Environment – Ambient conditions and conductor operating temperature
7. Special Requirements – Any custom specifications or standards
8. Delivery Location – Destination country and port

---
