Full Threaded Rods

Contact on whatsapp

Description

Technical Parameters and Drawings

HE Code Dimensions Min tensile strength Wt.
L D lbs kg
DAB1/2-12 12” (305) 1/2″(13) 7800 0.340
DAB1/2-14 14” (356) 1/2″(13) 7800 0.381
DAB1/2-16 16” (406) 1/2″(13) 7800 0.426
DAB1/2-20 20” (508) 1/2″(13) 7800 0.508
DAB1/2-22 22” (559) 1/2″(13) 7800 0.549
DAB1/2-24 24” (610) 1/2″(13) 7800 0.590
DAB5/8-10 10” (254) 5/8” (16) 12400 0.544
DAB5/8-12 12” (305) 5/8” (16) 12400 0.599
DAB5/8-14 14” (356) 5/8” (16) 12400 0.653
DAB5/8-16 16” (406) 5/8” (16) 12400 0.744
DAB5/8-18 18” (457) 5/8” (16) 12400 0.816
DAB5/8-20 20” (508) 5/8” (16) 12400 0.871
DAB5/8-22 22” (559) 5/8” (16) 12400 0.962
DAB5/8-24 24” (610) 5/8” (16) 12400 1.016
DAB5/8-26 26” (660) 5/8” (16) 12400 1.089
DAB5/8-28 28” (711) 5/8” (16) 12400 1.161
DAB5/8-30 30” (762) 5/8” (16) 12400 1.343
DAB3/4-12  12” (305) 3/4” (19) 18350 0.889
DAB3/4-14 14” (356) 3/4” (19) 18350 0.998
DAB3/4-16 16” (406) 3/4” (19) 18350 1.089
DAB3/4-18 18” (457) 3/4” (19) 18350 1.179
DAB3/4-20 20” (508) 3/4” (19) 18350 1.288
DAB3/4-22 22” (559) 3/4” (19) 18350 1.379
DAB3/4-24 24” (610) 3/4” (19) 18350 1.524
DAB3/4-26 26” (660) 3/4” (19) 18350 1.565
DAB3/4-28 28” (711) 3/4” (19) 18350 1.656
DAB3/4-30 30” (762) 3/4” (19) 18350 1.751
DAB3/4-32 32″(812) 3/4” (19) 18350 1.755
DAB3/4-34 34″(863) 3/4” (19) 18350 1.851
DAB3/4-36 36″(914) 3/4” (19) 18350 1.946
DAB3/4-38 38″(965) 3/4” (19) 18350 2.037
DAB3/4-40 40″(1016) 3/4” (19) 18350 2.132
DAB3/4-42 42″(1066) 3/4” (19) 18350 2.227
DAB7/8-12  12” (305) 7/8″(22) 25400 1.188
DAB7/8-14 14” (356) 7/8″(22) 25400 1.320
DAB7/8-16 16” (406) 7/8″(22) 25400 1.451
DAB7/8-18 18” (457) 7/8″(22) 25400 1.583
DAB7/8-20 20” (508) 7/8″(22) 25400 1.715
DAB7/8-22 22” (559) 7/8″(22) 25400 1.842
DAB7/8-24 24” (610) 7/8″(22) 25400 1.973
DAB7/8-26 26” (660) 7/8″(22) 25400 2.105
DAB7/8-28 28” (711) 7/8″(22) 25400 2.236
DAB7/8-30 30” (762) 7/8″(22) 25400 2.368
DAB7/8-32 32″(812) 7/8″(22) 25400 2.499
DAB7/8-34 34″(863) 7/8″(22) 25400 2.631
DAB7/8-36 36″(914) 7/8″(22) 25400 2.762
DAB7/8-38 38″(965) 7/8″(22) 25400 2.894
DAB7/8-40 40″(1016) 7/8″(22) 25400 3.025
DAB7/8-42 42″(1066) 7/8″(22) 25400 3.157
DAB1-12  12” (305) 1″(25.4) 33500 1.615
DAB1-14 14” (356) 1″(25.4) 33500 1.778
DAB1-16 16” (406) 1″(25.4) 33500 1.955
DAB1-18 18” (457) 1″(25.4) 33500 2.123
DAB1-20 20” (508) 1″(25.4) 33500 2.295
DAB1-22 22” (559) 1″(25.4) 33500 2.468
DAB1-24 24” (610) 1″(25.4) 33500 2.635
DAB1-26 26” (660) 1″(25.4) 33500 2.808
DAB1-28 28” (711) 1″(25.4) 33500 2.976
DAB1-30 30” (762) 1″(25.4) 33500 3.148
DAB1-32 32″(812) 1″(25.4) 33500 3.320
DAB1-34 34″(863) 1″(25.4) 33500 3.488
DAB1-36 36″(914) 1″(25.4) 33500 3.660
DAB1-38 38″(965) 1″(25.4) 33500 3.828
DAB1-40 40″(1016) 1″(25.4) 33500 4.001
DAB1-42 42″(1066) 1″(25.4) 33500 4.173
DAB11/4-12  12” (305) 1 1/4″(31.75) 53300 2.123
DAB11/4-14 14” (356) 1 1/4″(31.75) 53300 2.440
DAB11/4-16 16” (406) 1 1/4″(31.75) 53300 2.753
DAB11/4-18 18” (457) 1 1/4″(31.75) 53300 3.071
DAB11/4-20 20” (508) 1 1/4″(31.75) 53300 3.388
DAB11/4-22 22” (559) 1 1/4″(31.75) 53300 3.706
DAB11/4-24 24” (610) 1 1/4″(31.75) 53300 4.023
DAB11/4-26 26” (660) 1 1/4″(31.75) 53300 4.336
DAB11/4-28 28” (711) 1 1/4″(31.75) 53300 4.654
DAB11/4-30 30” (762) 1 1/4″(31.75) 53300 4.971
DAB11/4-32 32″(812) 1 1/4″(31.75) 53300 5.289
DAB11/4-34 34″(863) 1 1/4″(31.75) 53300 5.606
DAB11/4-36 36″(914) 1 1/4″(31.75) 53300 5.919
DAB11/4-38 38″(965) 1 1/4″(31.75) 53300 6.237
DAB11/4-40 40″(1016) 1 1/4″(31.75) 53300 6.554
DAB11/4-42 42″(1066) 1 1/4″(31.75) 53300 6.872





1. Tolerance: ±5%
2. All dimensions are in inch.

3. Material: carbon steel
4. Finish: hot dip galvanized
5. Customized sizes are available at request.






Product Description:

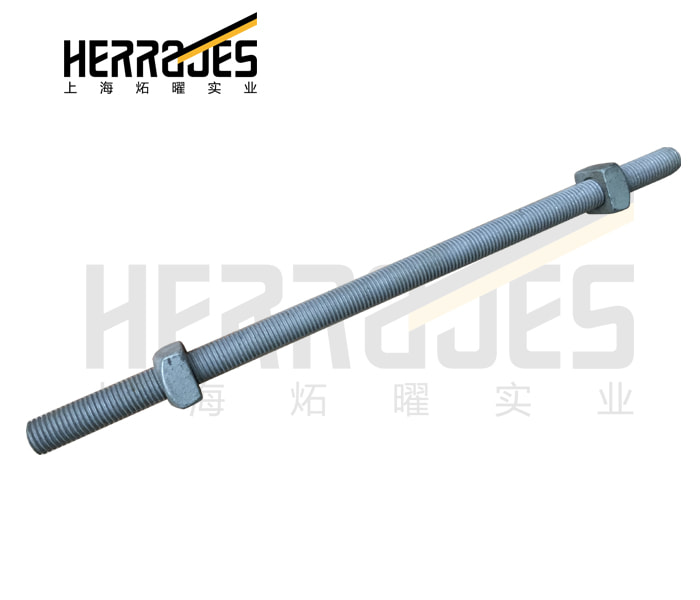

Threaded rods, also called double arming bolts, are produced for pole mounting on wood poles or cross arms.
Standard double arming bolts are full threaded, assembled with four square or hex nuts.
While attaching cross arms together, two nuts at each end can maintain correct spacing.
Cone points at each bolt end are designed for easily driving bolts without damaging their threads.
Threaded rods are constructed of high quality carbon steel SAE 1010 to 1020, hot dip galvanized per ASTM A153 for corrosion resistance.




A193 B7 threaded rods conform to ASTM A193-B7 specification for quenched and tempered alloy steel fasteners.
These threaded rods are available as both fully threaded rods and as double end bolts.


The above are typical only, please consult Shanghai Herrajes for further information.


Product Details:
Name: threaded rods, double arming bolts, threaded bars, B7 studs, stud bolts
HS code: 7318159090
Model: ANSI/ASME
Package: bulk packing; palletized; as required
Trademark: HE, as required
Origin: China
Raw material: carbon steel Q235
Finish: HDG
ODM&OEM service: yes
Sample: available, FOC
Payment term: T/T, 30% prepayment and 70% balance against B/L
Certificate: ISO
Delivery time: 20-40 days
MOQ: 500kgs
Export term: FOB; CIF
Production capacity pcs/day: 2000
Minimum tensile strength lbs.: 7800
Diameter in: 1/2, 5/8, 3/4, 7/8, 1,etc.
Length in: 12, 14, 16, 20, etc.
